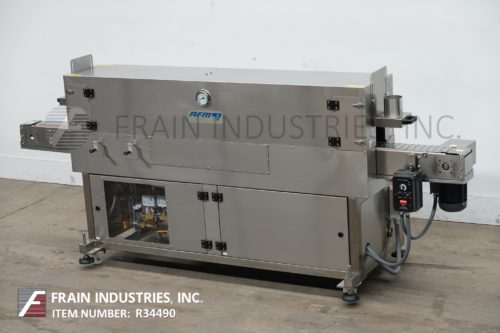

American Film & Machinery Shrink Tunnels WSN-300-2M

• Manufacturer: American Film & Machinery
• Model: WSN-300-2M
• Category: Shrink
• Subcategory: Tunnels

American Film & Machinery Model WSN-300 stainless steel, steam shrink tunnel and conveyor, steam generator with number of containers per minute. Can handle middle or full body and cap shrink applications with materials of PVC, PETG, OPS and PLA and a wide range of round, square, oval and other irregularly shaped containers. Equipped with 1 zone and 2 tier shrink steam tunnel with 5-1/4" wide x 8" high total aperature x 79" long chamber has multiple steam zones and adjustable manifold with direct steam heat, 4-1/2" wide x 128" long stainless steel table top product conveyor with 36" in feed and discharge height and hand crank adjustable to + / – 2". A/C vari-speed controller, with internally plumbed and steam pressure controls drip pan for condensation recovery and maximum operating temperature of 212° F, with temperature gauge and adjustable manifold for direct steam heat with steam pressure of 3-4 Kg/cm2 and 43 to 57 psi with (2) top 3-3/4" OD steam exhaust, hot and cold water in / output ports with consumption rates of 200 litres or 52 gallons an hour with steam pressure and motor speed controls. Mounted on stainless steel frame with casters and leveling legs.

OAD: 128" L x 36" W x 53" H
