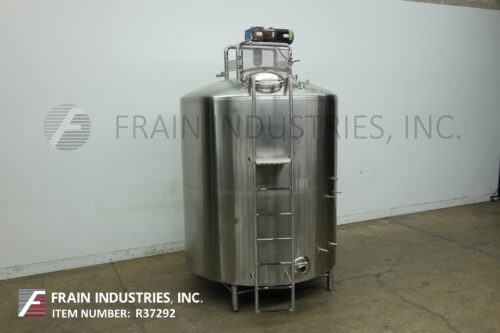

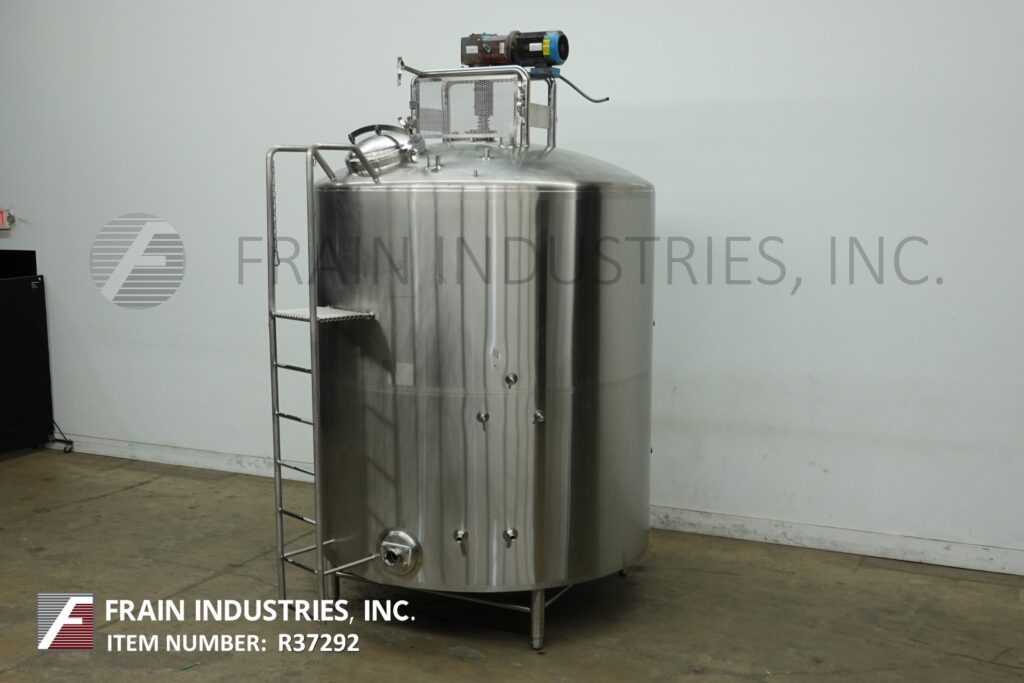

DCI Tank Processors 2000 GALLON

• Manufacturer: DCI
• Model: 2000 GALLON
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Processor

DCI, 2,000 gallon capacity, 304 Stainless Steel jacketed and insulated process tank. Vessel dimensions: 84" diameter, 84" straight wall with 18" manway and 2 thermowells. Equipped with lift up / clamp down covers, top mounted 1½ Hp side and bottom sweep agitation, and (2) CIP spray balls supplied by 2½"OD / 2"ID Tri-clamp fittings. Slant bottom has 3½" OD / 2½" ID side bottom discharge with 22" ground clearance.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(1) 4" Open Vent

Jacket Ports:
(6) 1¾" NPT

Jacket MAWP 60 psi @ 300 deg F

OAD: 107" L x 92" W x 155" H
