DCI Tank Processors 2500 GAL

• Manufacturer: DCI
• Model: 2500 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Processor

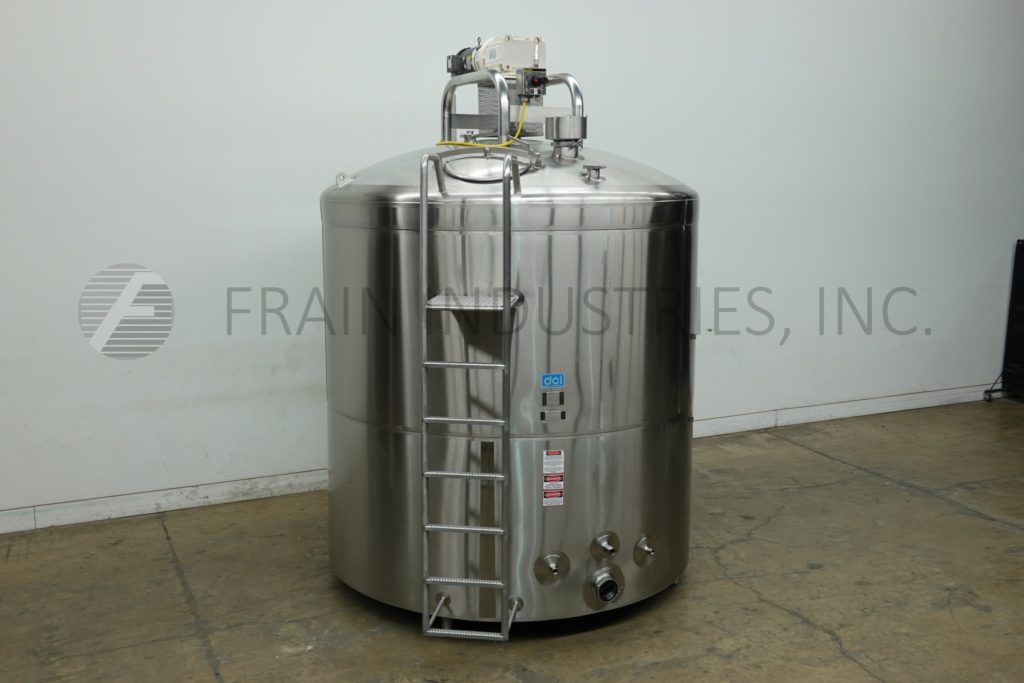

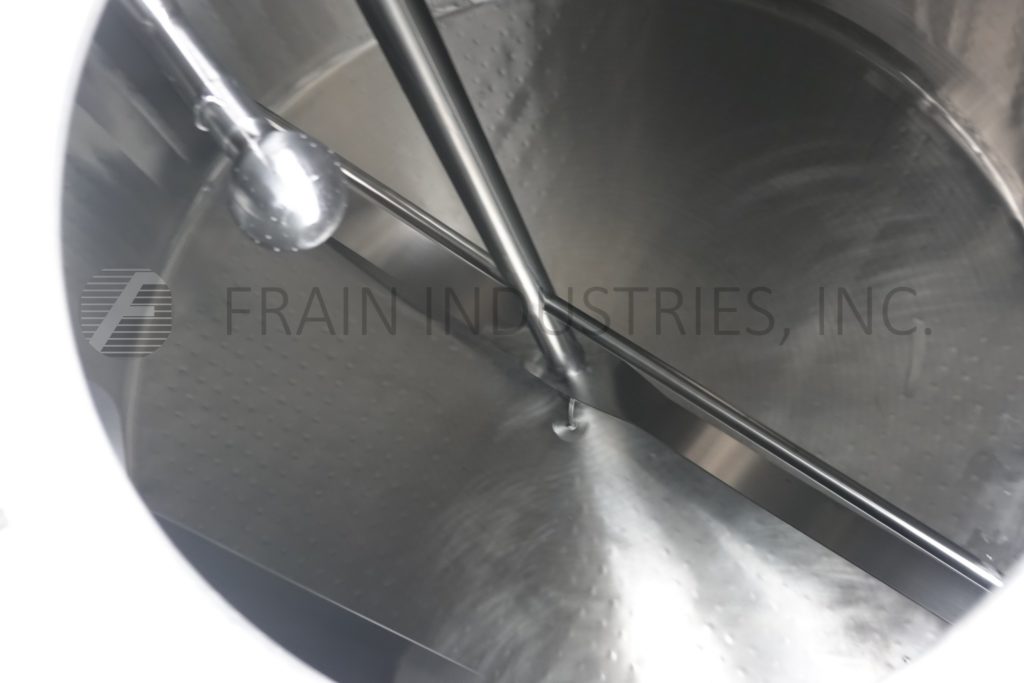

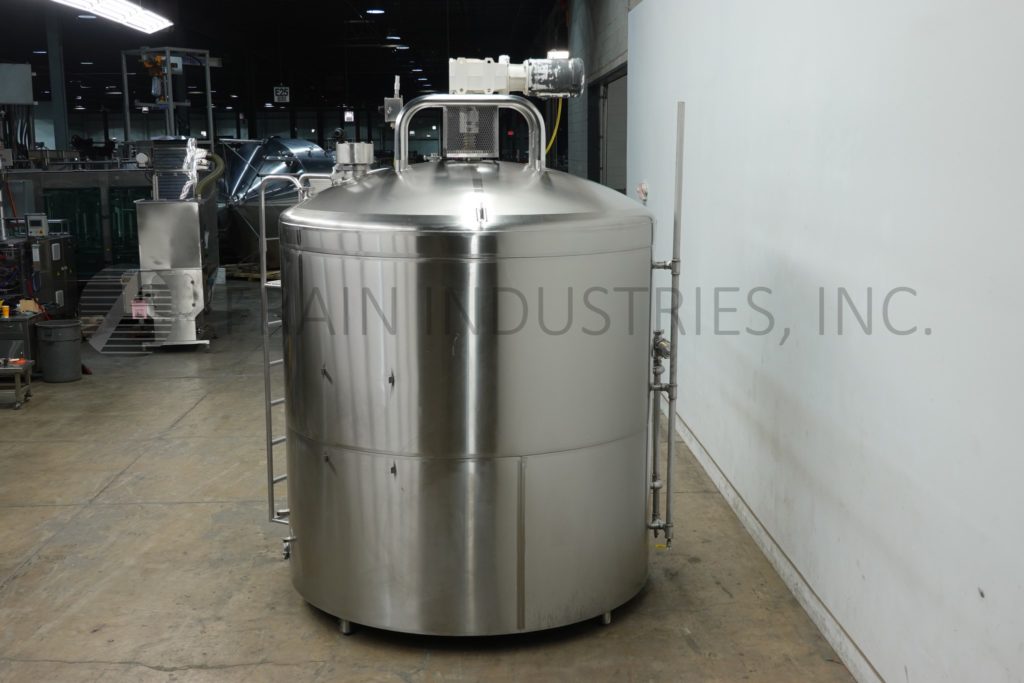

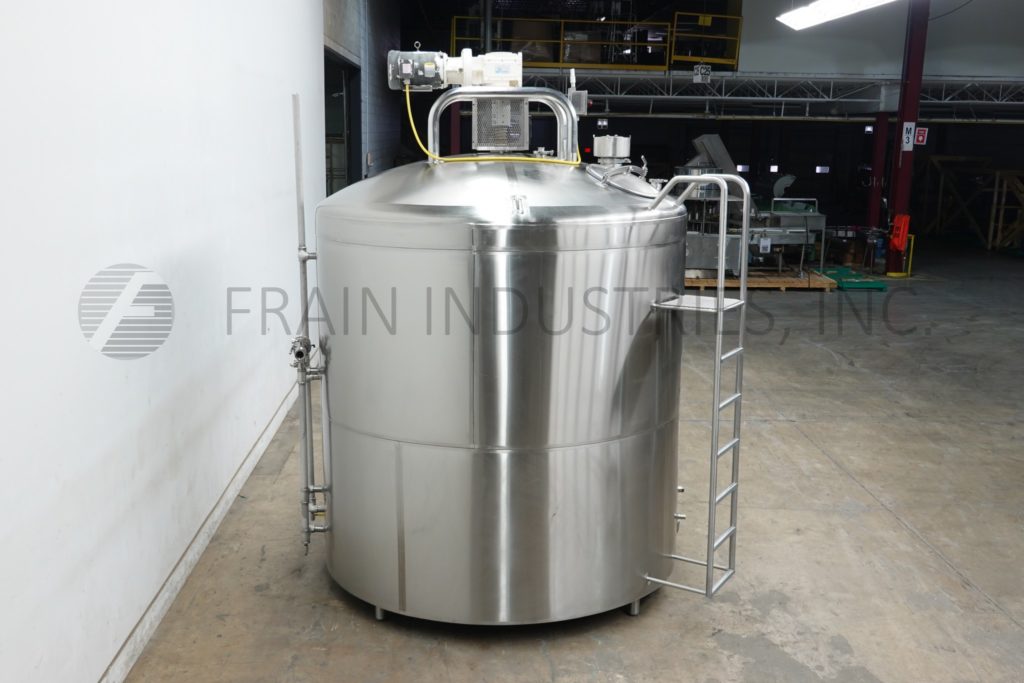

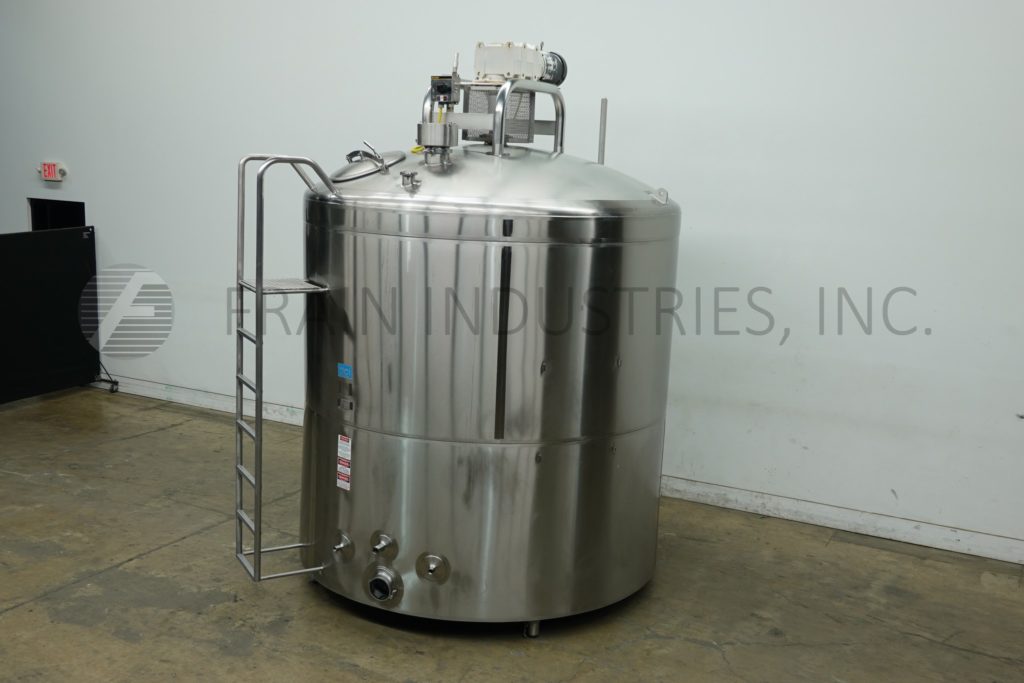

DCI, 2,500 gallon capacity, 316 stainless steel jacketed and insulated process tank. Vessel dimensions: 96" diameter, 88" straight wall, with a 18"ID manway. Equipped with lift up / bolt down covers, top mounted 5 / 2½ HP bottom sweep agitation and (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-Clamp fitting. Slant bottom has 3½" OD / 3" ID bottom discharge with 8" ground clearence.

MAWP: 75 PSI @ 320°F

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

OAD: 125" L x 110" W x 146" H
