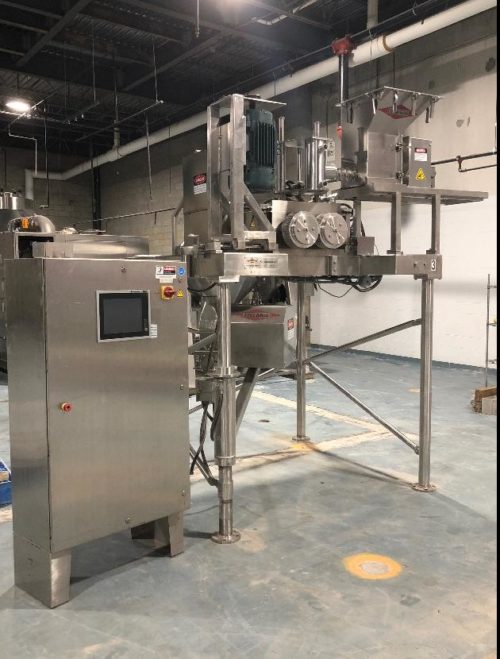

Fitzpatrick Mill Chilsonator IR4LX10D

• Manufacturer: Fitzpatrick
• Model: IR4LX10D
• Category: Mill
• Subcategory: Chilsonator

Fitzpatrick Model IR4L X 10D, 316 stainless steel, roller compactor chilsonator with onboard stainless steel Fitzmill Model D6A hammer mill rated up to 800 lbs of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with (2) screw feed design and has 19" long x 16" wide x 20" deep ID, stainless steel product hopper with 4" OD horizontal screw that eliminates vacuum dearation to 5" OD vertical pre-compression screw that compresses the product for more uniformity prior to feeding into the 4" x 10" groved product compaction rollers with roller force of 17.6 KN/CM and roller gaps of 1mm to 6mm, powered by 5 Hp motor drive with onboard stainless steel Fitzmill Model D6A hammer mill has (16) fixed stainless steel impact blades powered by 5 Hp motor drive with 14” long x 6” wide product discharge and 39” floor clearance. Remote control cabinet has A/B panelview touch pad controller with e-stop. Mounted on (4) legs stainless steel frame.

OAD: 108" L x 77" W x 120" H Chilsonator
36" L x 17" W x 72" H Control Panel
