Goodway Mixer Paste Horizontal CM35

• Manufacturer: Goodway
• Model: CM35
• Category: Mixers - Paste Mixing
• Subcategory: Horizontal

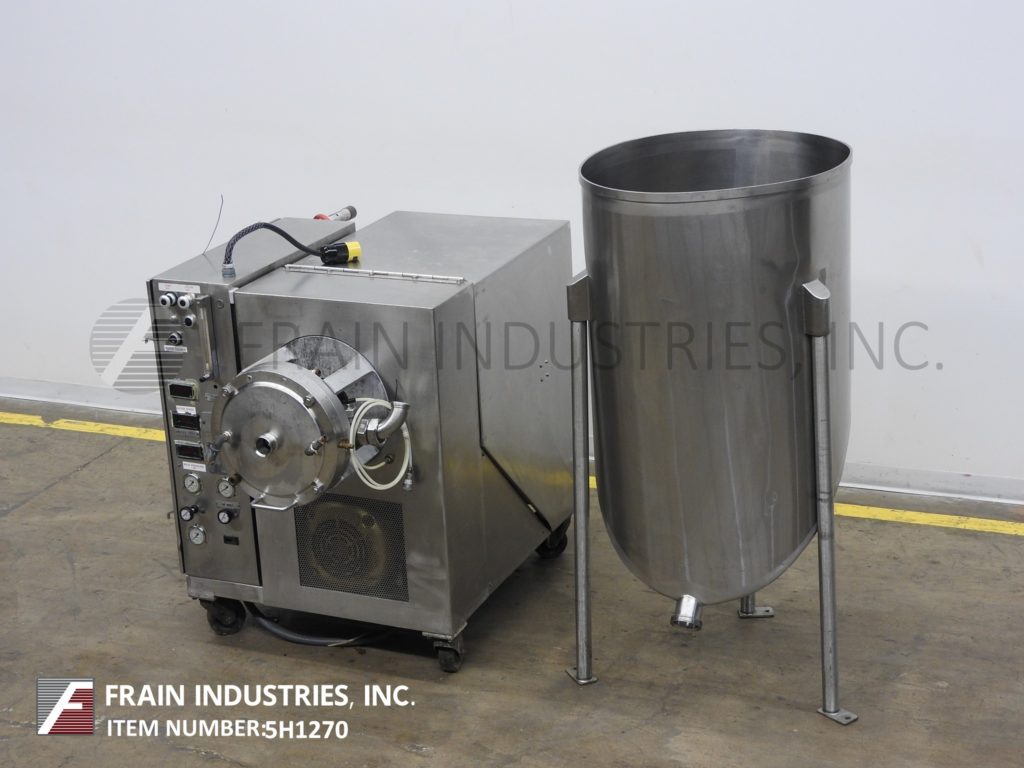

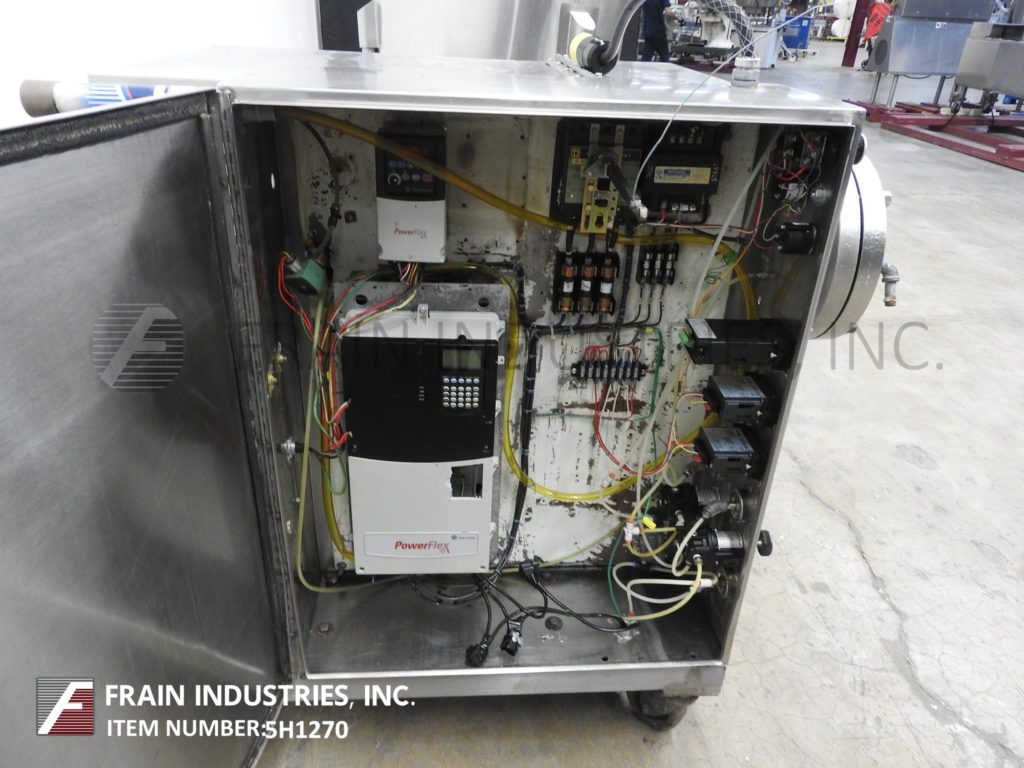

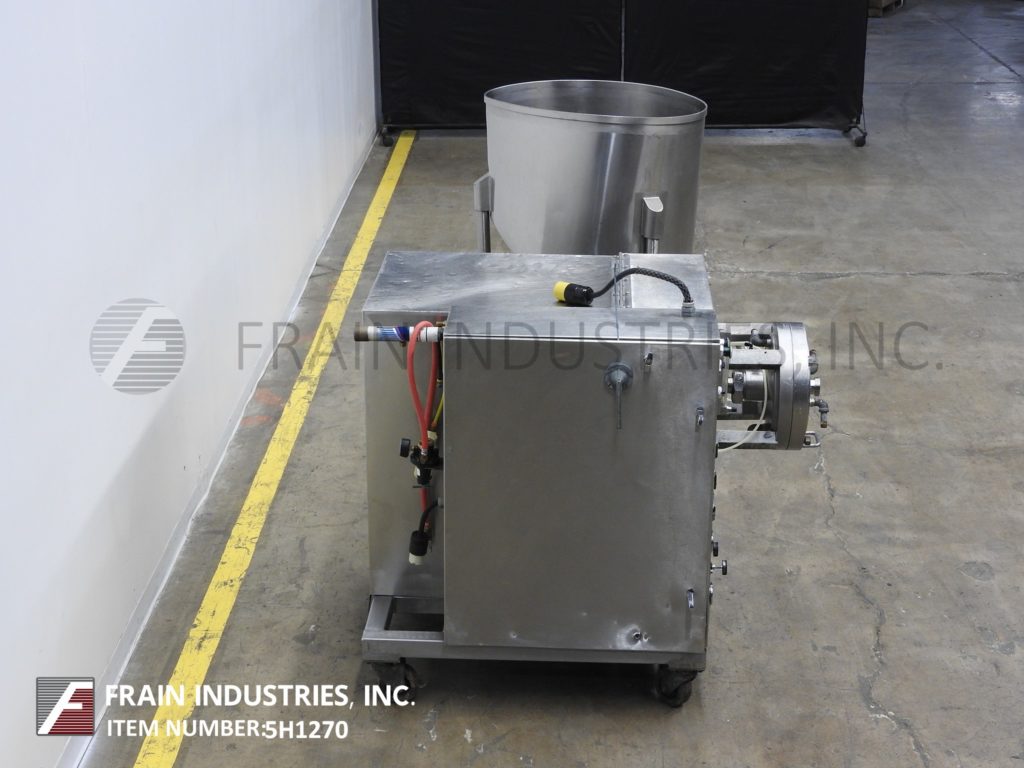

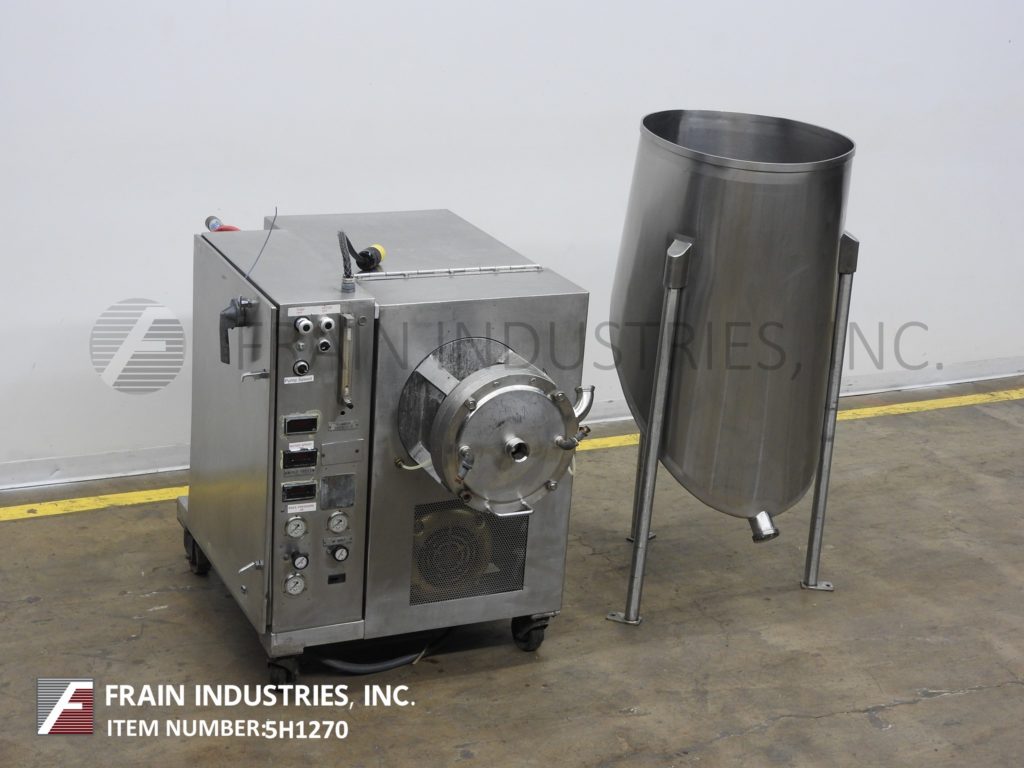

Goodway compact, high shear, continuous, stainless steel, rotar, stator, aerator, mixer with rates per hour – depending on materials and application. Equipped with double wall mixing chamber for cooliant circulation with 16" OD / 13" ID pyramid shaped mixing head has raidial flow disc with high shear action consisting of front and rear rotor and stator with 2-1/2" OD threaded center finished product outlet port and sanitary seal drive shaft rated from 150psi standard up to 450psi on the CM35. Control panel has rotor / mixer and pump supply speed controls, rotor and pump stops, air supply, and back pressure gauges with flowmeter. Mounted on a stainless steel common base frame. Continuous mixer aerates cake batter, creme fillings, marshmallow, icings, whipped creme, butter and many others.

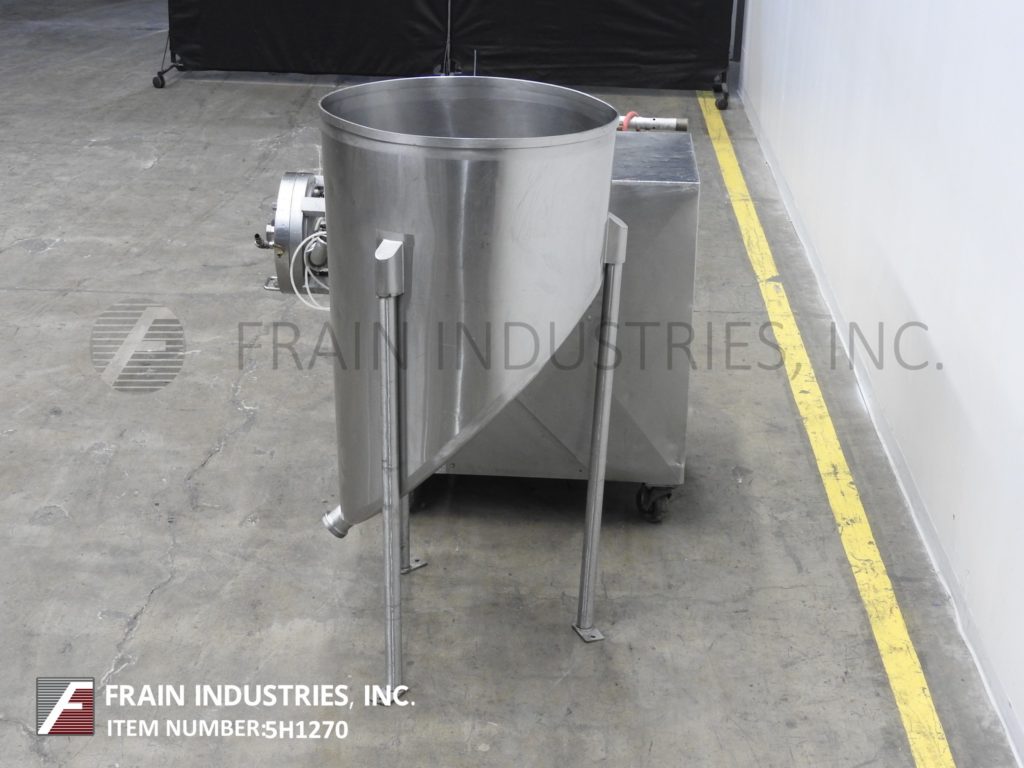

100 gallon, 304 stainless steel, slant bottom holding tank. Vessel Dimensions: 30" diameter x 47" deep with an 18" straight wall. Equipped with a 3½"OD / 3"ID Seated Bevel style bottom discharge with 11½" ground clearance. Mounted on (3) legs.

OAD: 64" L x 40" W x 48" H (mixer)
OAD: 36"L x 34"W x 63"H (tank)
