I J White Systems Freezer Spiral AMBIENT

• Manufacturer: I J White Systems
• Model: AMBIENT
• Category: Freezer
• Subcategory: Spiral

PART OF COMPLETE LINE 5H1360A

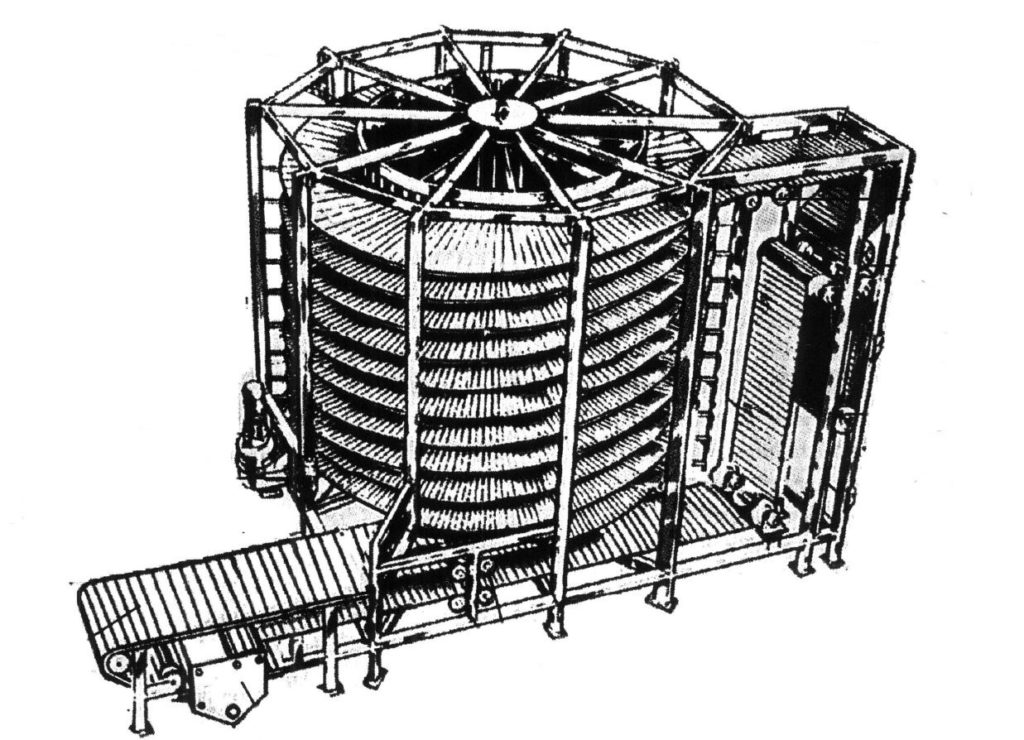

I J White Systems (9)-tier, stainless steel, spiral, descending, ambient air cooling system with number of product per hour – depending on materials, application, belt width and speed. All stainless steel contact parts. Equipped with 30" wide total, 28" wide usable, 1" x 1" flex mesh stainless steel product belt with overall length of 640′ and 582′ of usable cooling length has 6" tier pitch with maximum product height of 2-1/4". Overall 20′ 7" OD aluminum frame has 9 tiers descending with 11′ 10" product in feed and 6′ 10" product discharge heights both with cleat track transfer conveyors. Low tension bottom motor drive and chain-driven north to south travel carousel providing even cooling and consistent product quality. Remote control panel has power on start, stop and e-stop controls with A/B inverter. Mounted on multi-leg heavy duty base frame.
