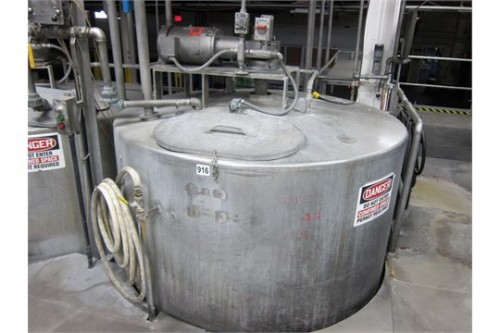

Photo of Langsenkamp Tank SS Single Wall 1200
Thumbnail of Langsenkamp Tank SS Single Wall 1200 Thumbnail of Langsenkamp Tank SS Single Wall 1200 Thumbnail of Langsenkamp Tank SS Single Wall 1200 Thumbnail of Langsenkamp Tank SS Single Wall 1200

Langsenkamp Tank SS Single Wall 1200

  Back to All Equipment
Get a Free Quote

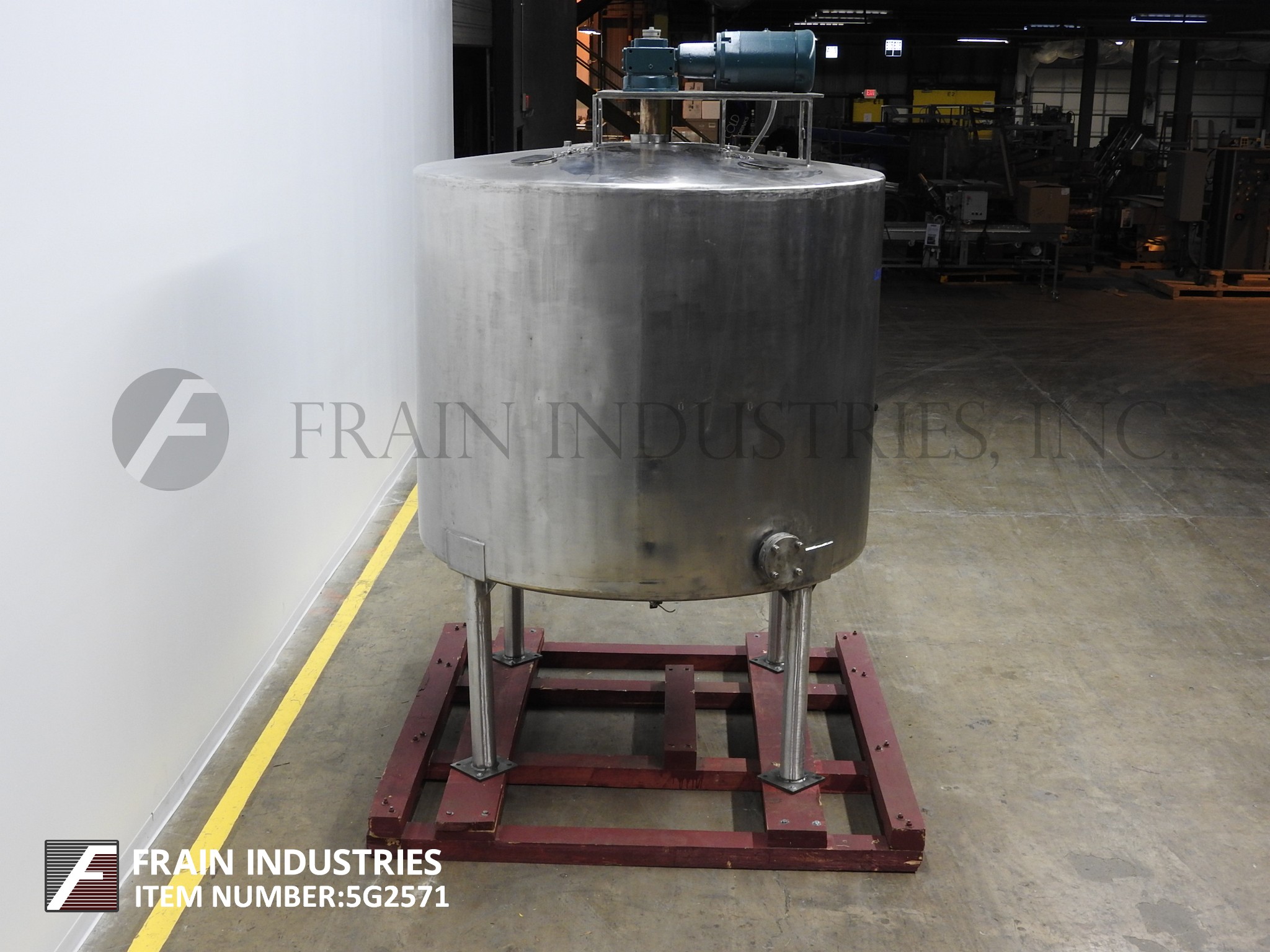

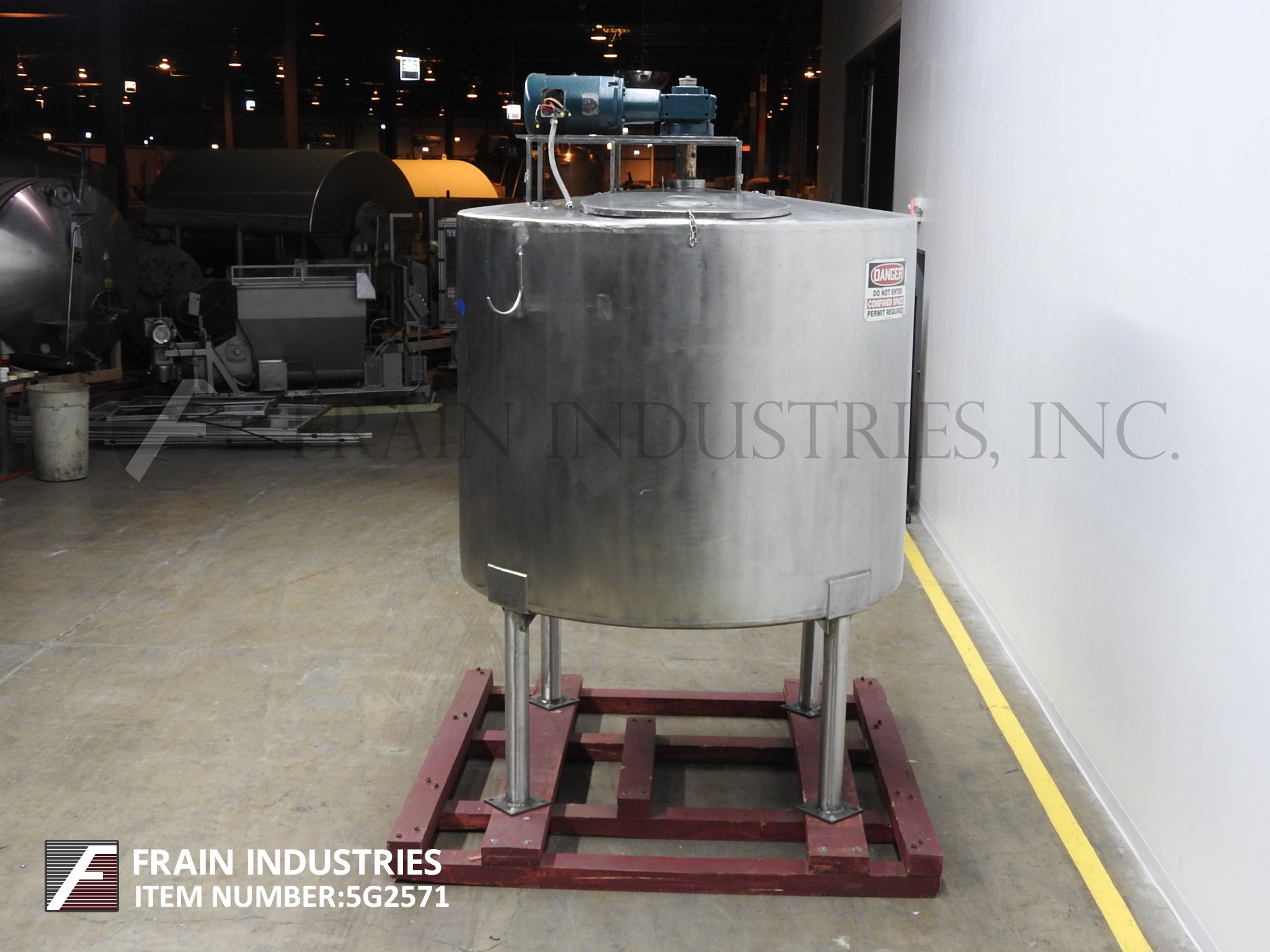

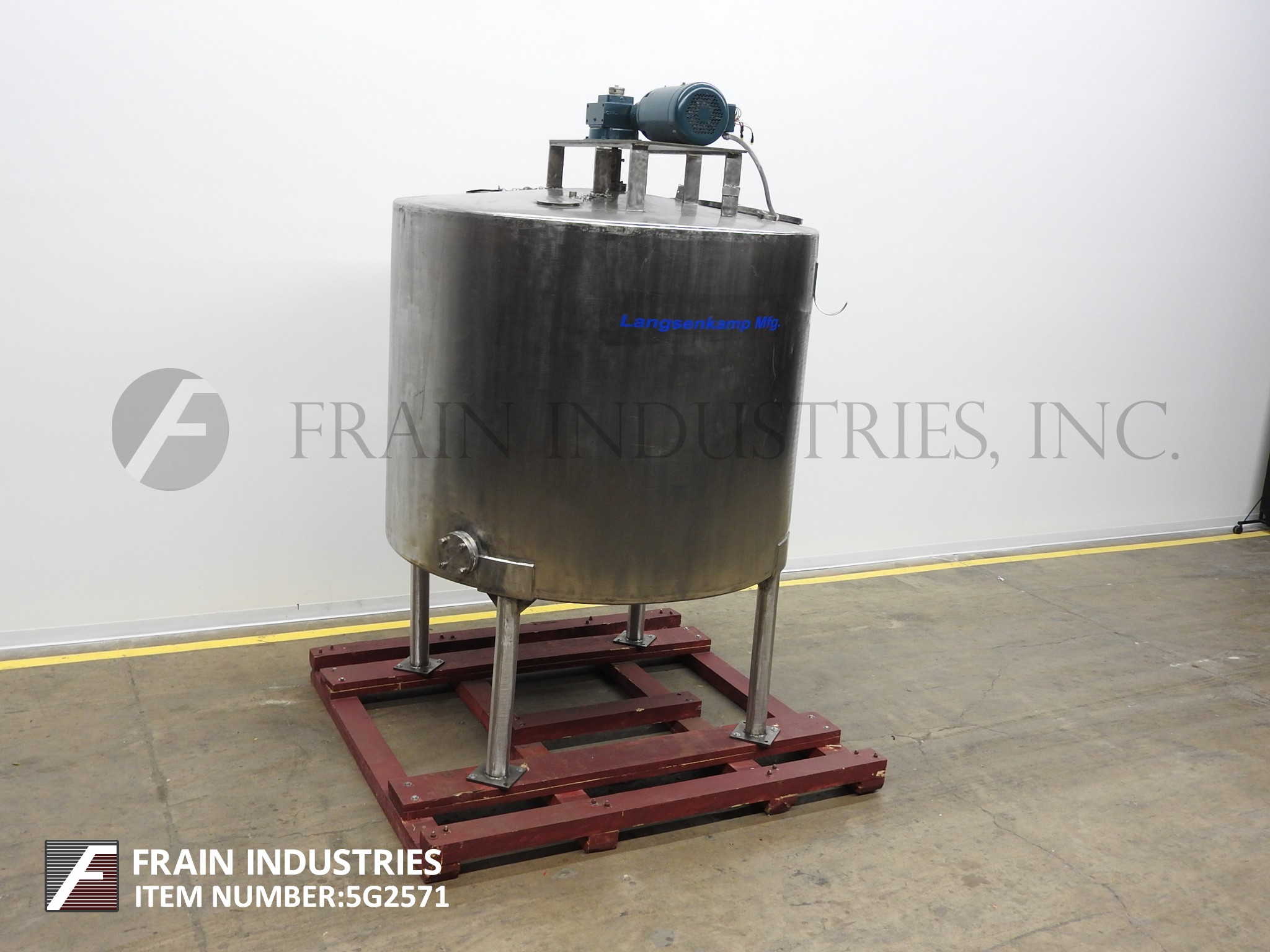

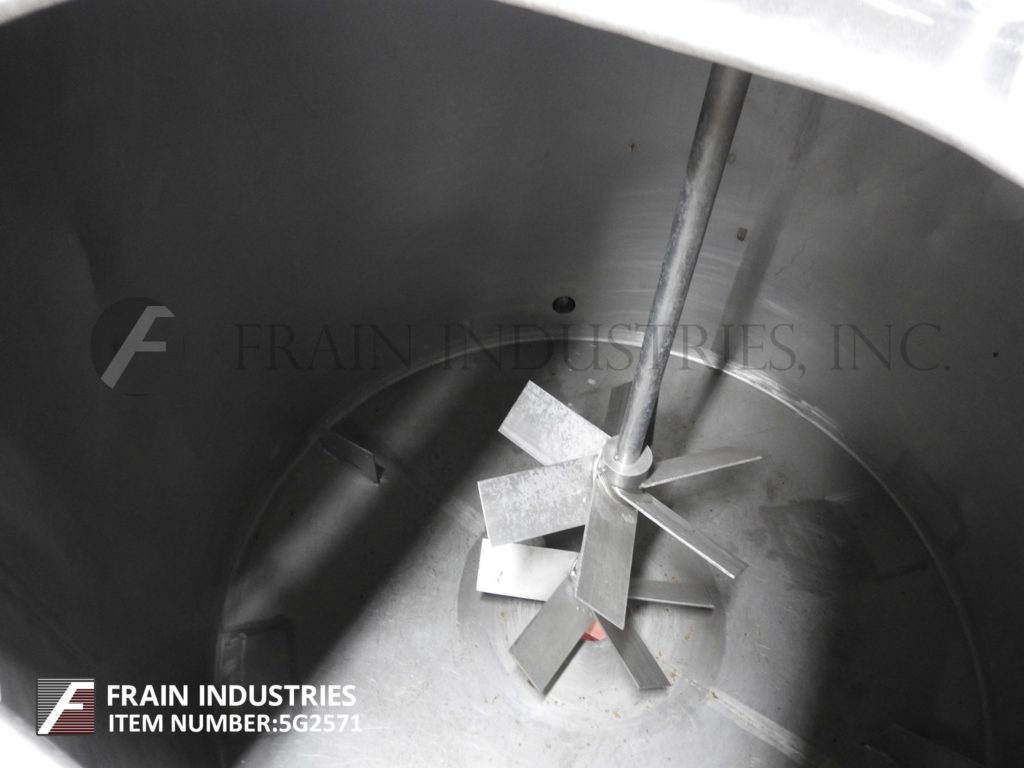

Langsenkamp, 1200 gallon, 304 stainless steel, single wall tank. 78" diameter x 62" straight wall. Equipped with a 3 HP drive powering a single motion dual six-paddle prop style mixer mounted on a 36" long x 21" wide platform above center of tank. Vessel has a dome top with (2) 6"ID and (1) 1.5"ID ports as well as (1) 29" x 18" oval shaped man way with lift off lid. The sidewall has (1) 7.5" diameter four-bolt pattern flange fittings with 3.25" ID. Dish bottom has (1) 11" diameter eight bolt pattern flange discharge with 18" ground clearance. Mounted on (4) stainless steel legs.

OAD: 82" L x 78" W x 115" H
