Laub Filler Liquid Pos Disp RPF30030P

• Manufacturer: Laub
• Model: RPF30030P
• Category: Fillers - Liquid Filling
• Subcategory: Positive Displacement

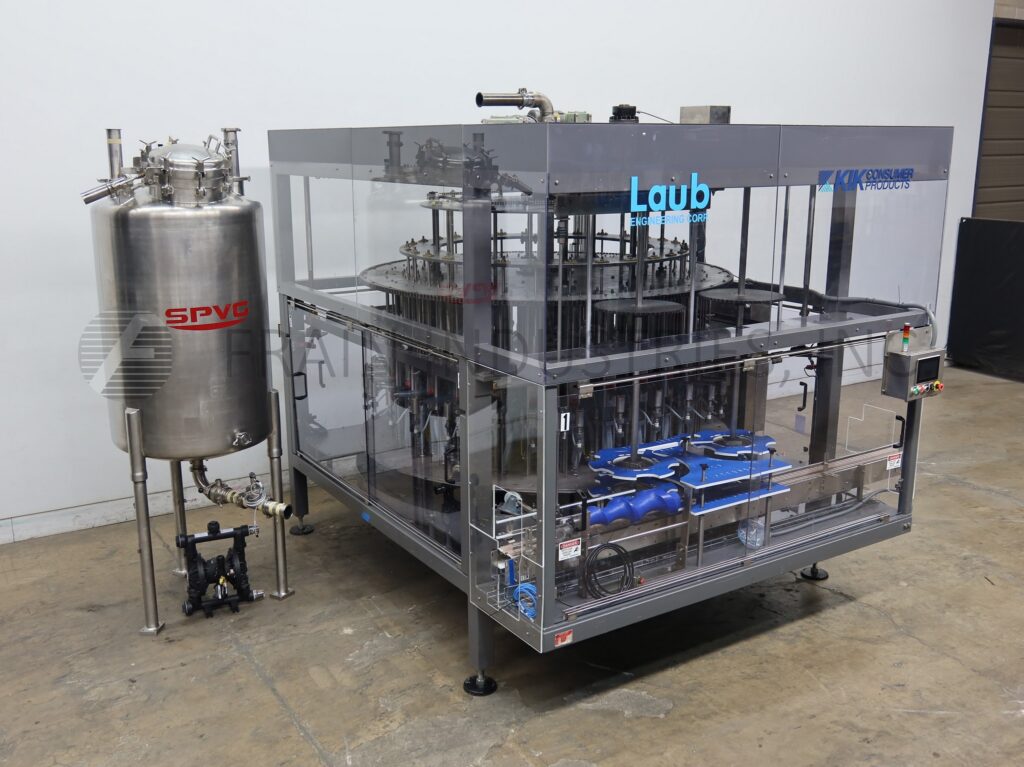

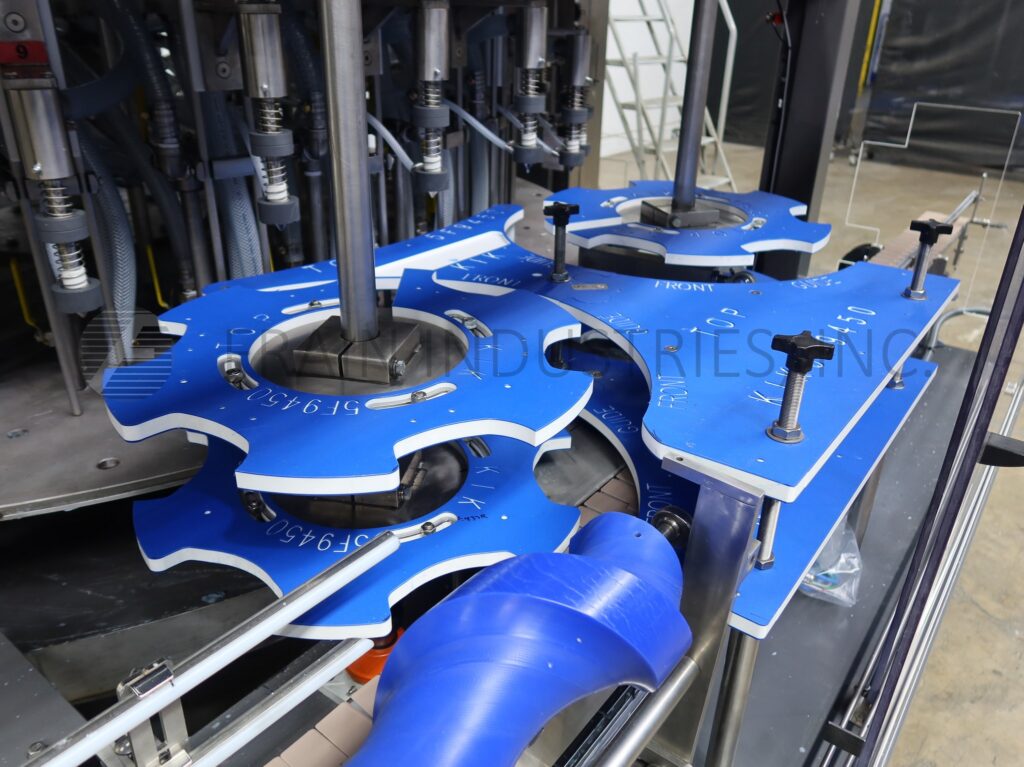

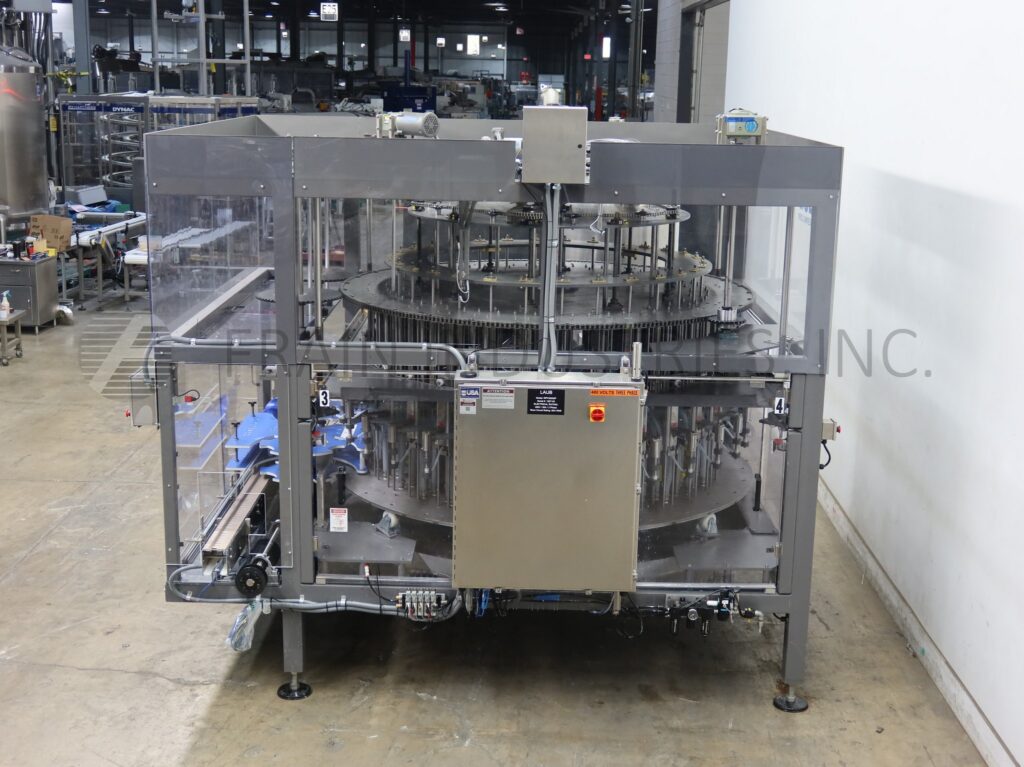

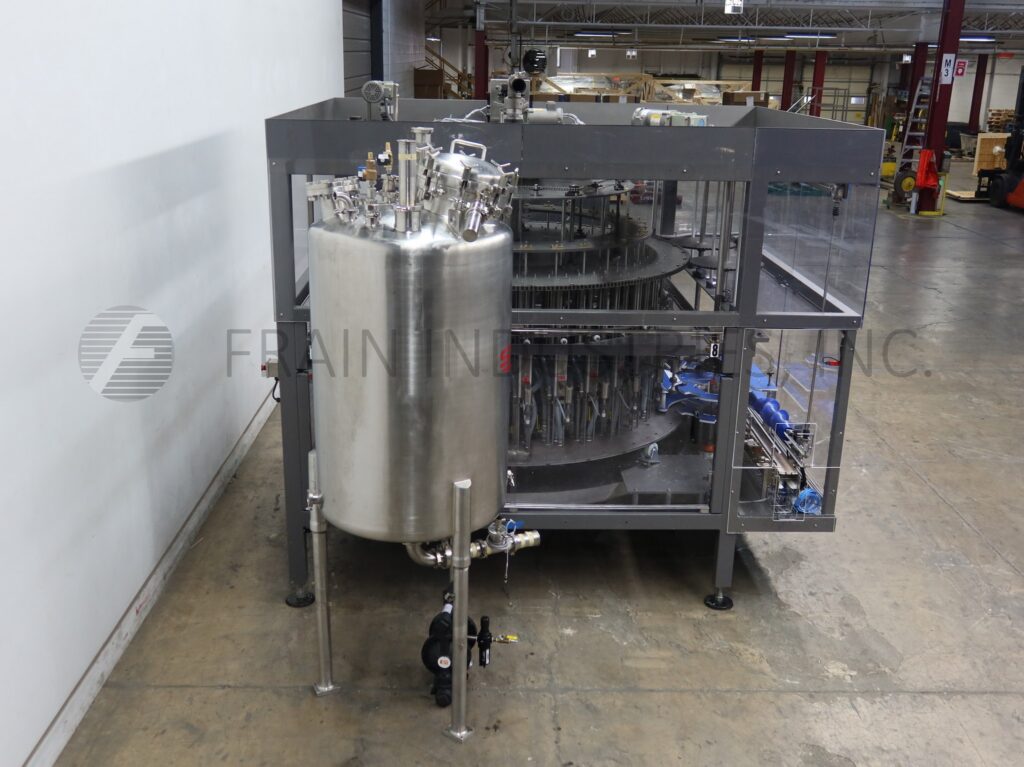

Laub Model RPF300-30P Posifiller, 30 head, rotary, pressure assit, piston filler rated from 30 to 300 containers per minute – depending on materials and application. Fill range: ounces to gallons of semi viscous to viscous liquids, accuracies depending on product and container. Maximum container size: up to 7-1/2" in Diameter; up to 12" in Height, capable of handling glass, plastic and metal containers with proper change parts. Equipped with container conveyor, worm screw to star wheel in feed and discharge (change part per application), 100" OD turret with top driven pressurized pre-measuring device to the (30) filling stations with 4" OD x 16" Long piston and 7/8" OD nozzles set on 10" centers with metering tank and diaphram pump. Control panel, has A/B PLC. Mounted on (4) leg base frame.

OAD: 156" L x 120" W x 111" H
