Lee Kettle Single Motion 20D

  Back to All Equipment

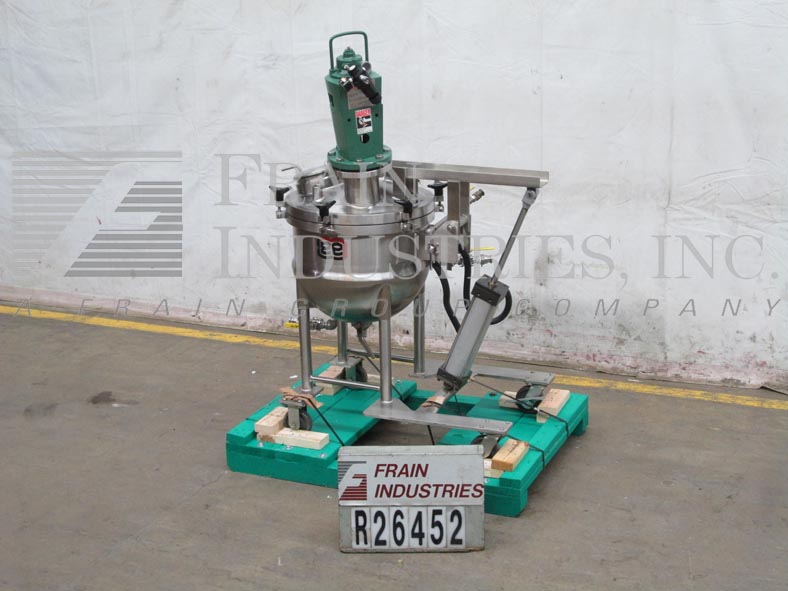

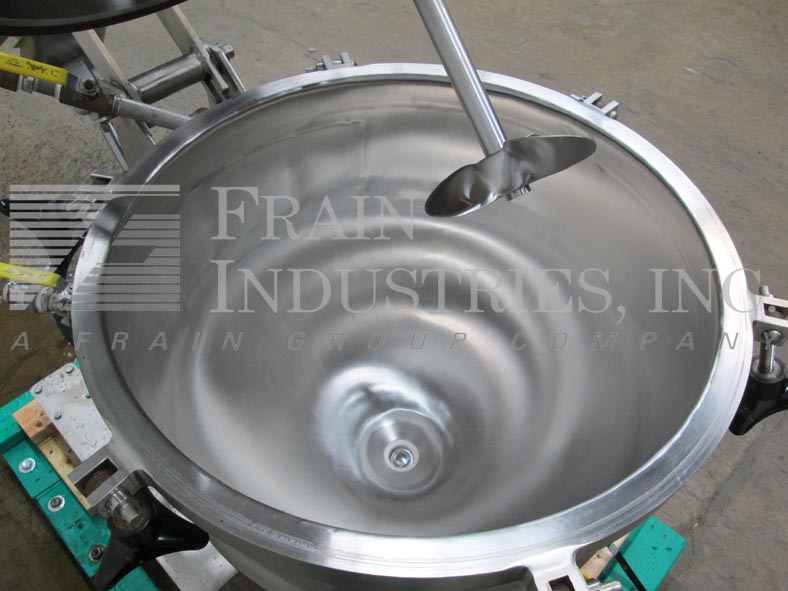

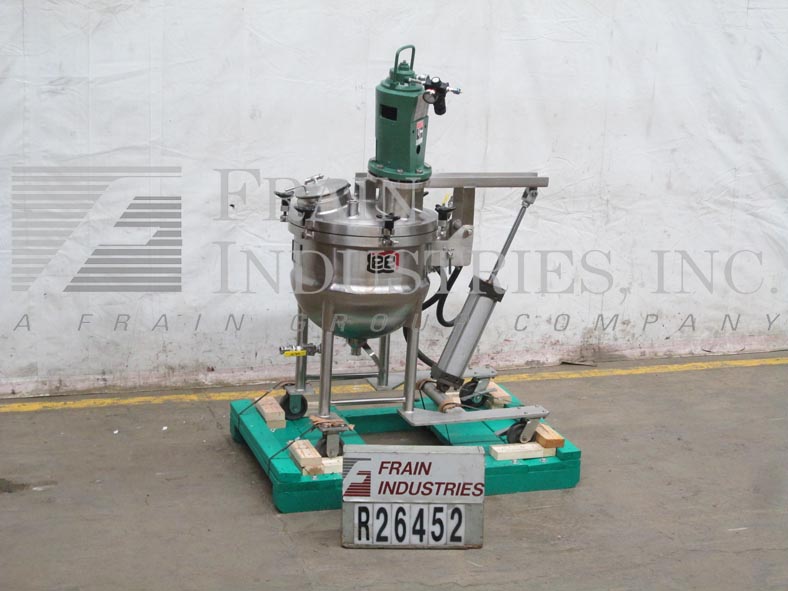

Lee, Model 20D, vacuum rated 316 stainless steel half jacketed single motion kettle. Vessel Dimensions: 22" diameter x 9" straight wall. Equipped with a pneumatic Lightnin mixer with a 7" diameter 3 blade prop. Lift out bolt down cover with (4) 2"OD/1½"ID tri-clamp fittings and (1) 8¾" diameter manway with lift off lid. (2) 1" jacket inlets. Dish bottom equipped with a ball valve with 2"OD/1½"ID tri-clamp style discharge with 15" ground clearance. Unit mounted on (4) tubular legs and common base with locking casters.

Jacket: MAWP: 90 PSI @ 332° F
MDMT: -20° F @ 90 PSI

Internal: MAWP: 15 PSI @ 250° F
MDMT: -20°F @ 15 PSI

Nat’l Brd: 5315
OAD: 48"L x 28"W x 66"H
