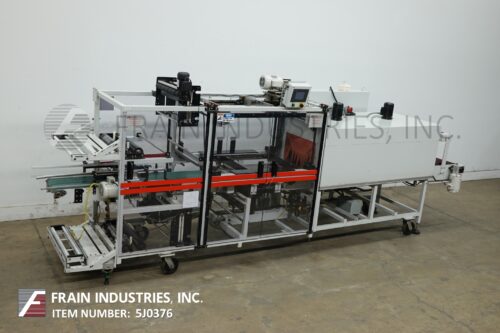

Edl Shrink Bundler FBS24

  Back to All Equipment
Get a Free Quote

EDL Model FBS22, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 35 bundles per minute – depending on materials and application. Product size range: 10" to 24" in Length x 5" to 14" in width x 3" to 10" in Height. Equipped with 80" long x 15-1/4" wide in feed conveyor, 124" long x 24" wide metering conveyor with pneumatic gate indexing, 25" wide hot impulse seal jaws set on 27" centers, with flight bar, film rolls up to 24" in width; and 16" OD.
Single zone shrink tunnel with 24" wide flex link conveyor and 25” in width x 16" in height aperture and 80" long chamber with top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.

OAD: 240"L x 58"W x 80"H
