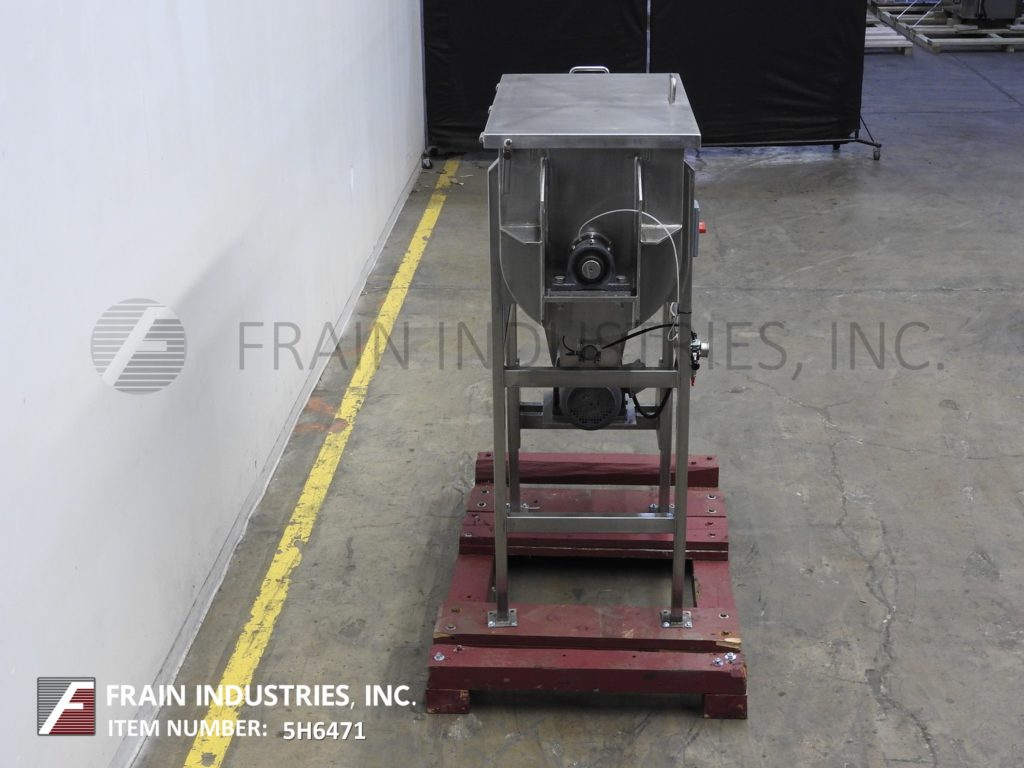

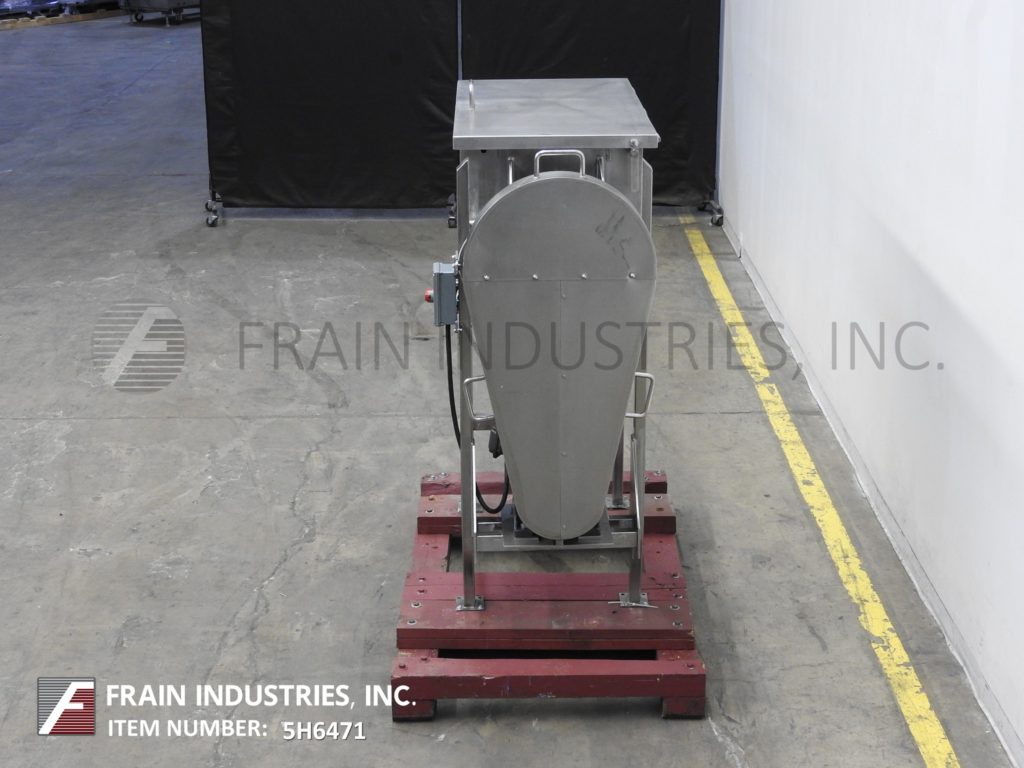

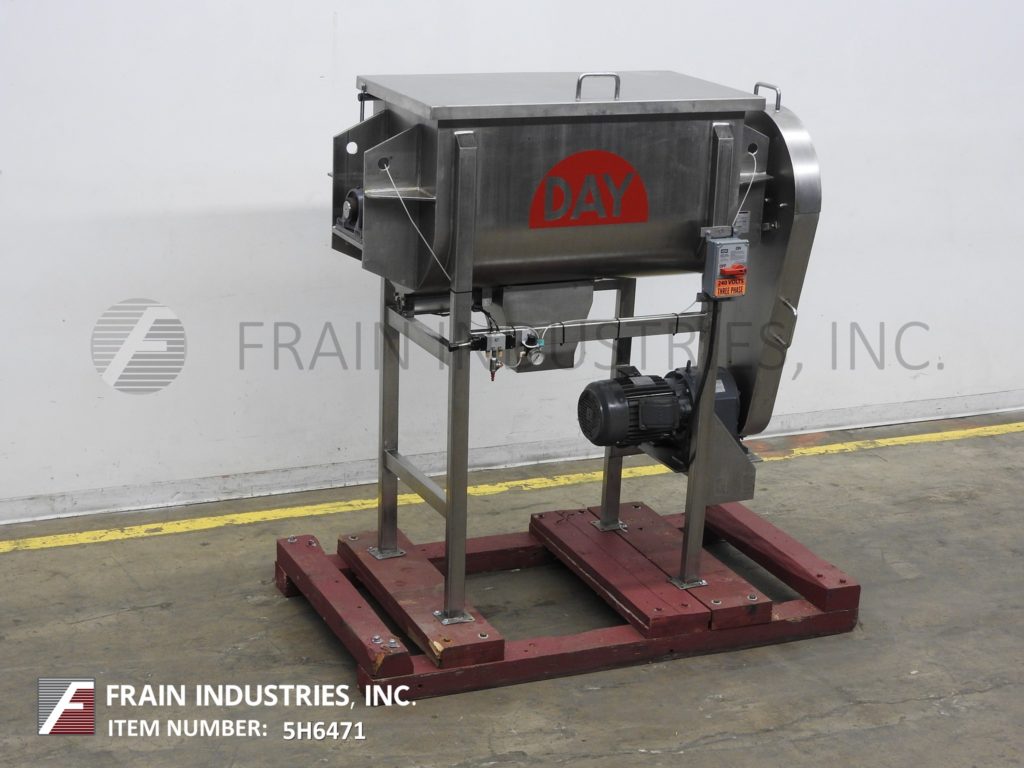

Mixer Powder Ribbon S. S. 10 FT³

• Model: 10 FT³
• Category: Mixer Powder
• Subcategory: Ribbon S. S.

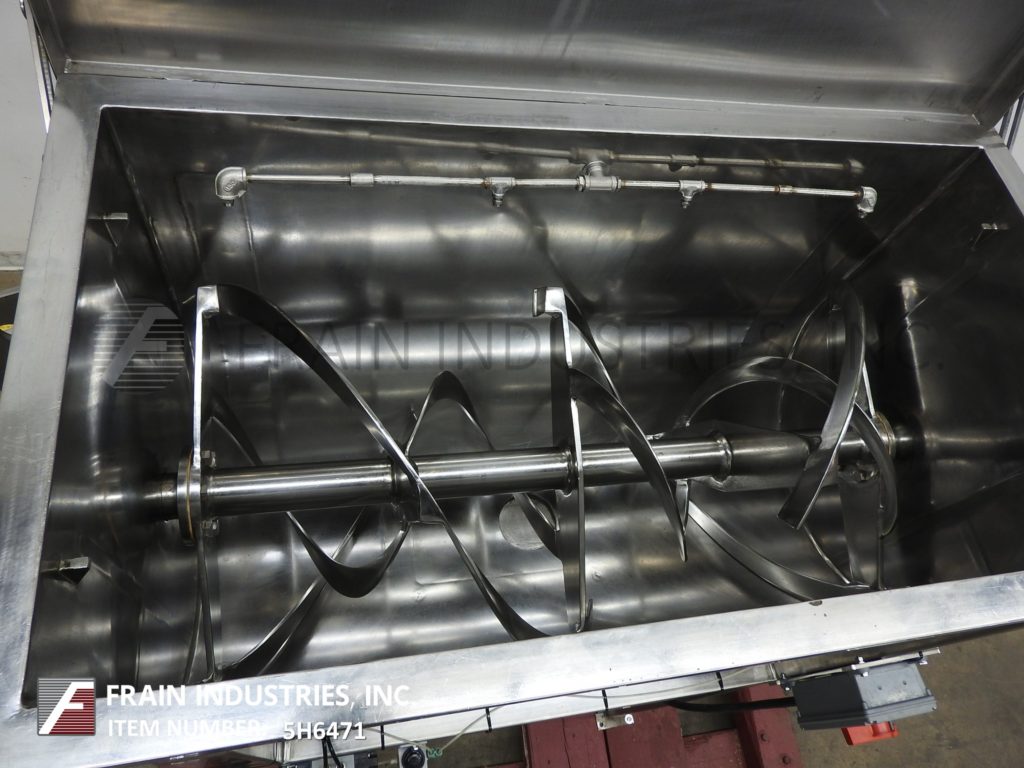

10 ft³, double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel contact parts with Inner mixing chamber dimensions of: 43" in Length; 22" in Width; 25" in Depth. Equipped with lift up cover, lift out safety grate, (4) nozzle spray bar, 2¼" OD mixing shaft with 1½" wide x ¼" thick (outer) and 1½" wide x (1/8)" thick (inner) stainless steel ribbons. 4" center bottom discharge with pneumatic slide gate and 8" x 8" discharge chute with 36" ground clearance. Mounted on (4) leg frame with casters.

OAD: 64"L x 26"W x 75"H
