Mueller Tank SS JKT 5250 GAL

  Back to All Equipment
Get a Free Quote

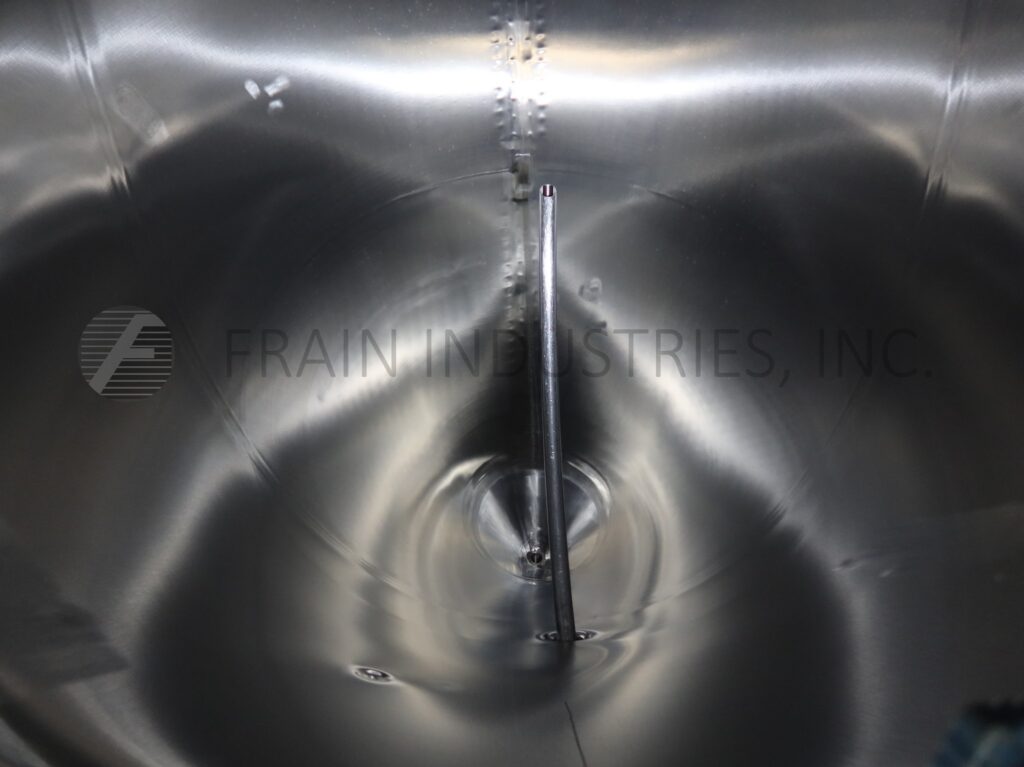

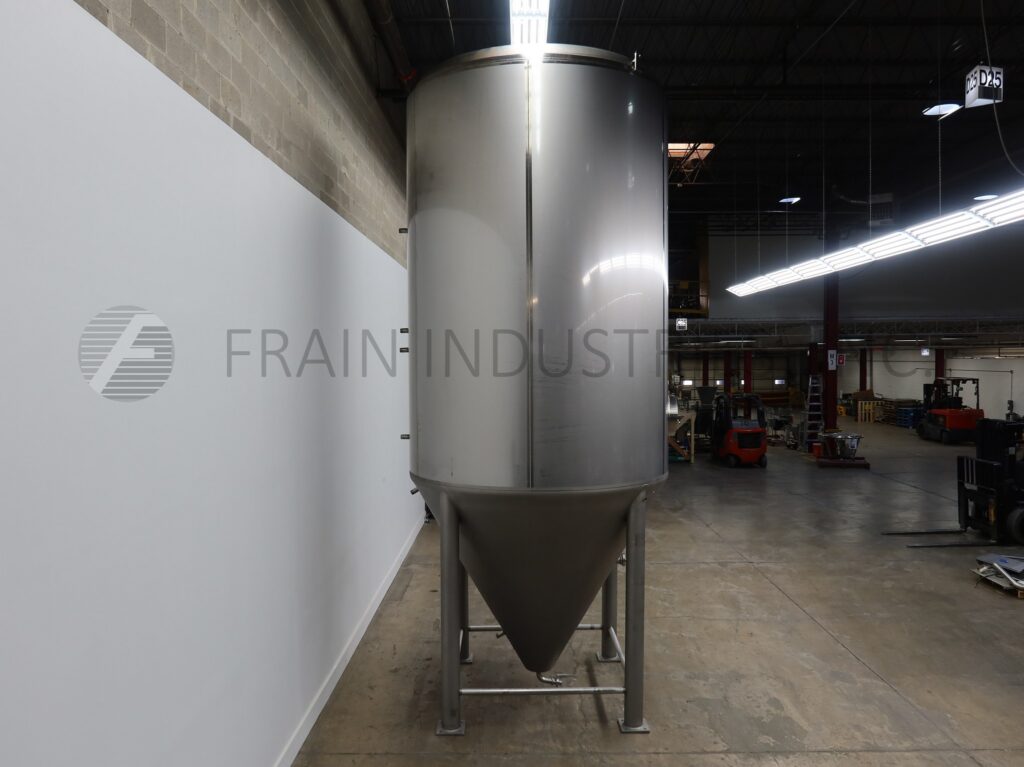

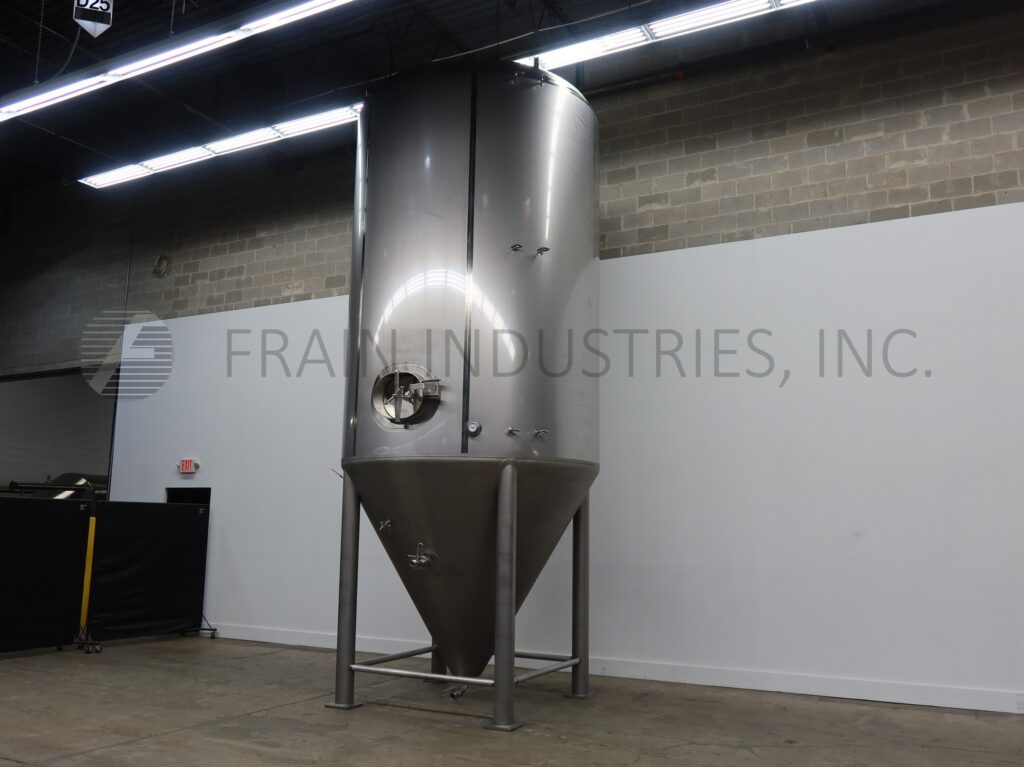

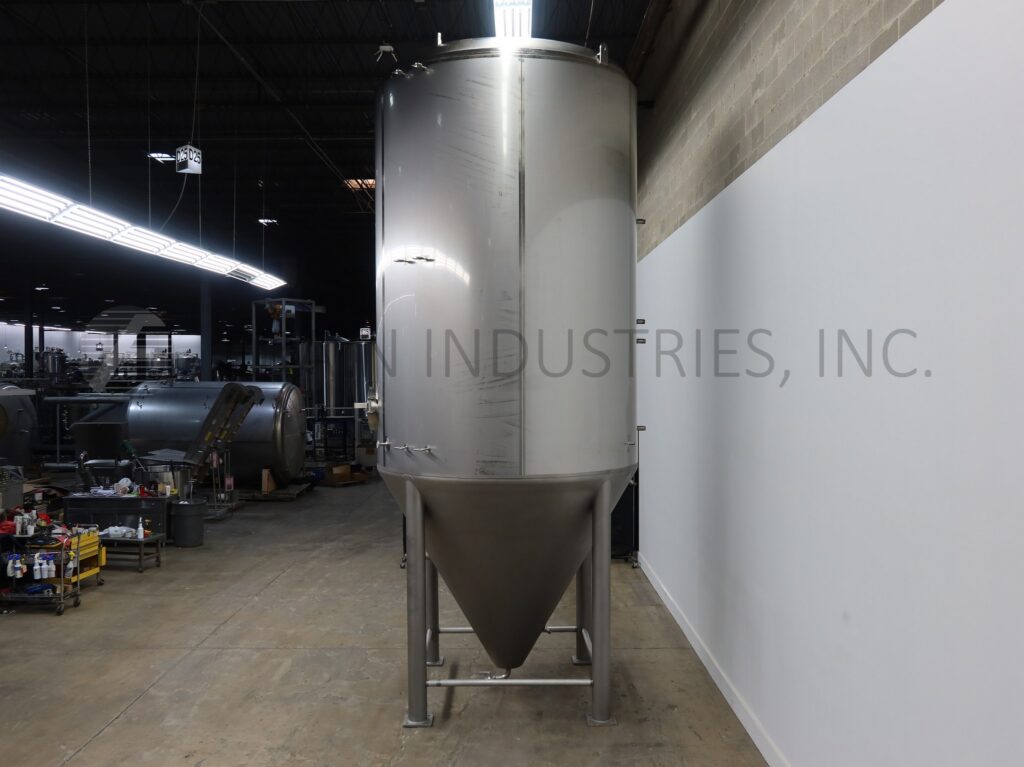

Mueller, 5,250 gallon, 304 stainless steel, jacketed and insulated tank. Vessel Dimensions: 96" diameter x 138" straight wall with a cone bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, top pressure releif valve and 2½"OD / 2"ID Tri-clamp style bottom fittings with 3" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Jacket Access:
(6) 1½" NPT

MAWP: 14.9 PSI @ 100°F (Vessel)
MAWP: 80 PSI @ 100°F (Jacket)
MDMT: 0°F @ 80 PSI (Jacket)

OAD: 110"L x 101"W x 245"H
