Ross Tank SS Single Wall FDA500

  Back to All Equipment
Get a Free Quote

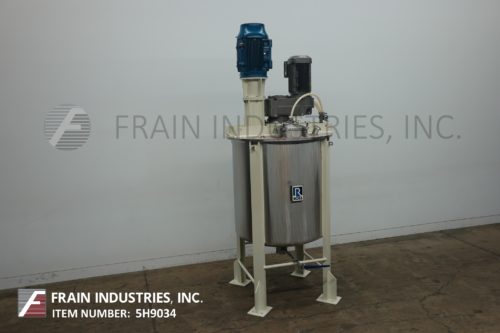

Ross, Model FDA-500, 500 gallon, 316 stainless steel mixing tank. Vessel Dimensions: 55" diameter x 60" deep with a 55" straight wall. Equipped with flat top, 16" OD flip-up / clamp down man way, center bridge mounted 25 Hp scrape surface agitator, 50 Hp high speed saw tooth mixer and (3) CIP spray balls. Dish bottom has 3½" OD / 3"ID Tri-Clamp center bottom discharge with 23" floor clearance. Mounted on (4) leg painted frame.

Top Access:
(1) 8" diameter open vent
(1) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(4) 2"OD / 1½"ID Tri-Clamp

OAD: 68"L x 61"W x 154"H
