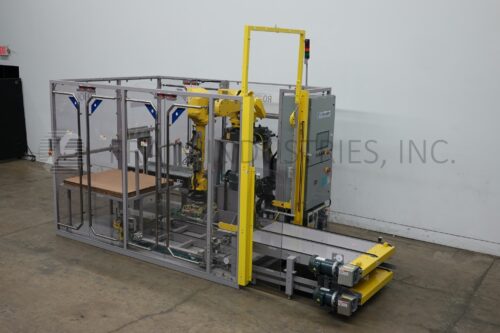

Photo of Schneider Palletizer Robotic ROBOX

Schneider Palletizer Robotic ROBOX

  Back to All Equipment

Schneider Model Robox, Robotic palletizing system with (5) axis, articulated, rotary joint, servo driven, robotic, pic-n-place arm rated from 1 to 10 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Painted carbon steel construction. Case size range: 6.5" to 22" in length, 4.5" to 16" in width and 3" to 16" in height. Pallet dimensions 48" x 40" x 4.5". Maximum pallet load size: 41" x 48" x 80" and sheet sizes 30" x 30" to 48" x 40" and vacuum pickable. Maximum pick-up weight of 50 kg. or 110 lbs. Ambient working temperature of 35º F to 100ºF and 95% RH non-condensing. Equipped with pallet sheet magazine, layer sheet capable. Fanuc M-7 10iC/50H Robot has end of arm vacuum tooling end affector. Over / Under conveyor, (3,000 pound) capacity and 20 second cycle time, Double (2) locking doors on perimeter guard located along the length of pallet provides operators easy access to pallet and has 80" long in feed conveyor with 30" to 36" in feed height and 0" to 15" discharge height. Control panel has Rockwell Automation Compact GaurdLoix PLC with VersaView 12" touchscreen HMI and statis light bar. UL Compliance, inspection and labeling of main electrical enclosure. Mounted on heavy duty frame.

Adjustable End-of-Arm Tooling Size range: 10.75 x 7.5″ to 18.25″ to 14.75″ with proper change parts

OAD: 211" L x 97" W x 90" H”
