Tank SS JKT 40 BBL

• Model: 40 BBL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Jacketed

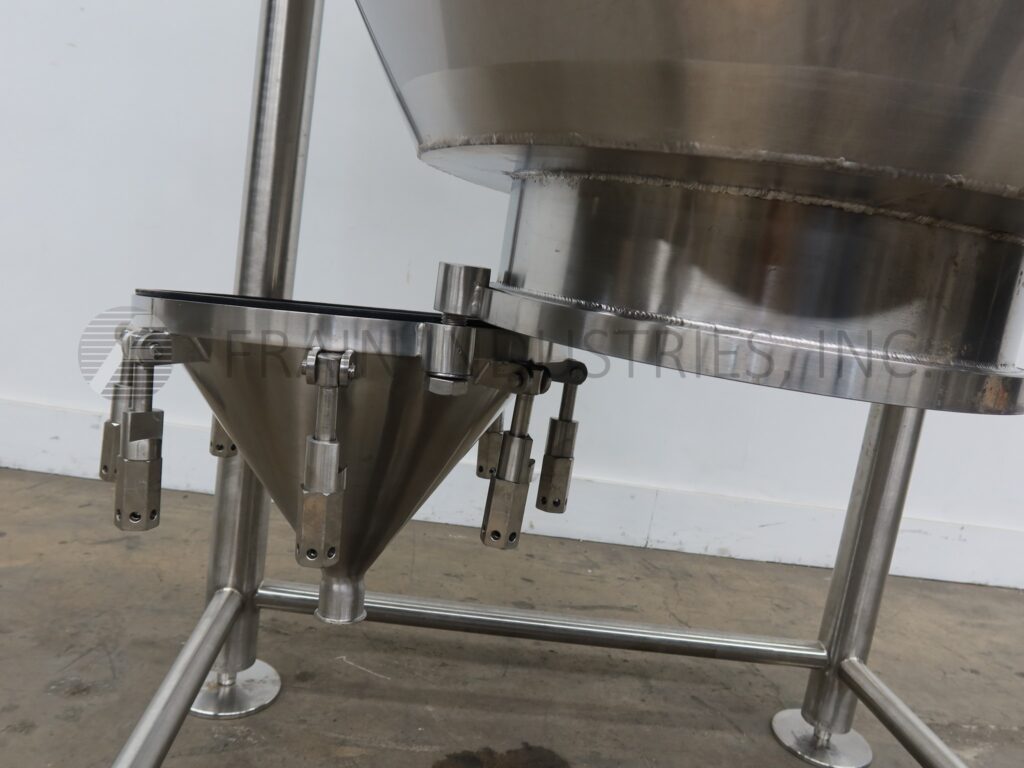

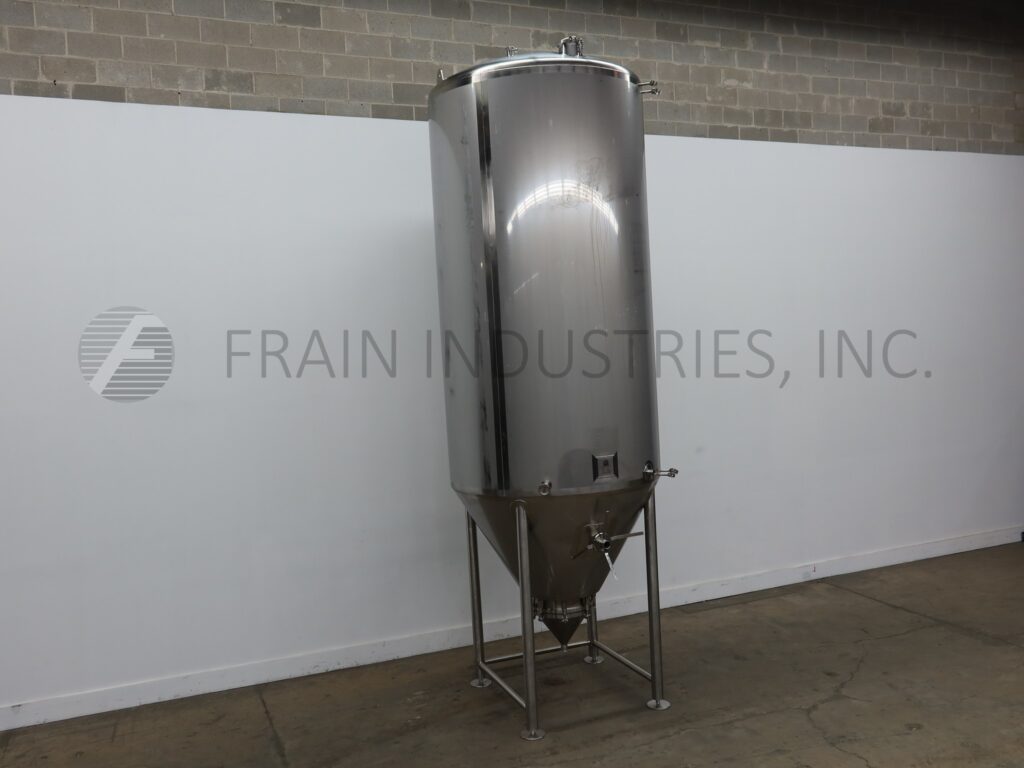

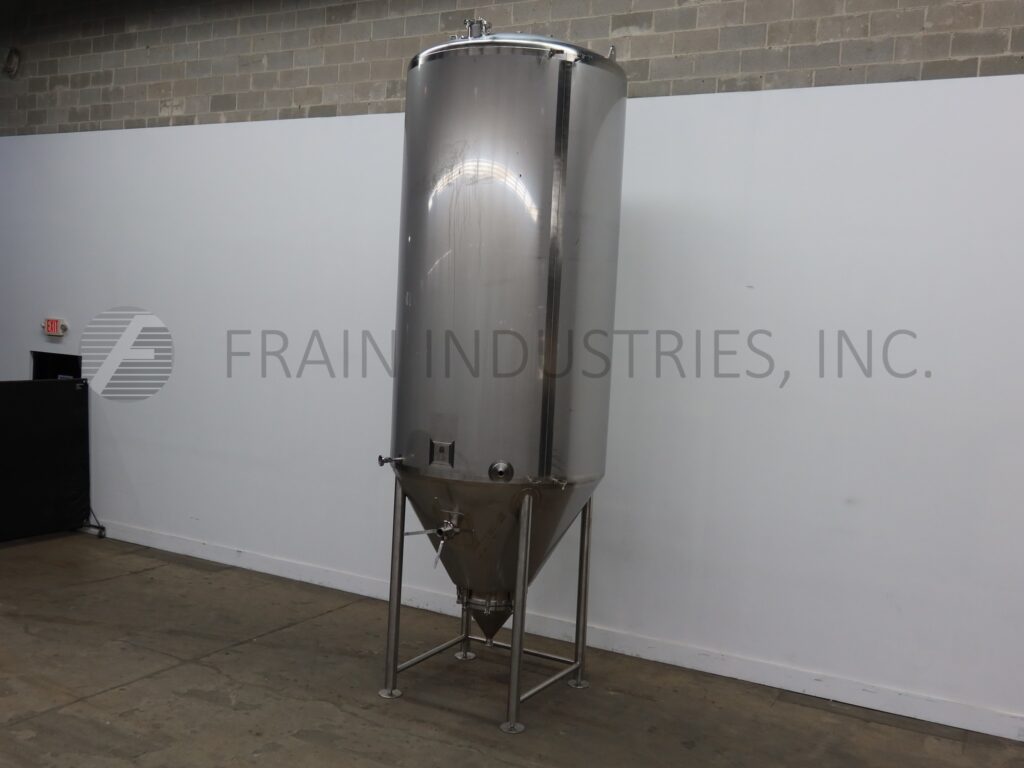

Sprinkman, 1,705 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 60" diameter x 120" straight wall with a cone bottom. Equipped with a thermowell and bottom cone manway with bolt down cover. 2" Tri-clamp discharge with 14" ground clearance.

Top Port:
(1) 6" ID Tri-Clamp
(2) 2" Tri-Clamp
(1) 1½" Tri-Clamp

Side Port:
(1) 2" Tri-Clamp
(1) 1½" Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 14.9 PSI @ 200°F (Vessel)
MAWP: 43 PSI @ 200°F (Jacket)

OAD: 74"L x 68"W x 205"H
