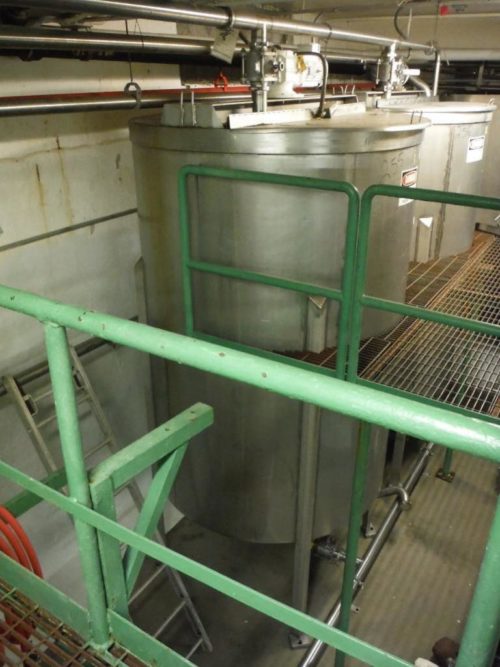

Photo of Tank SS Single Wall 1400 GAL
Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL Thumbnail of Tank SS Single Wall 1400 GAL

Tank SS Single Wall 1400 GAL

  Back to All Equipment
Get a Free Quote

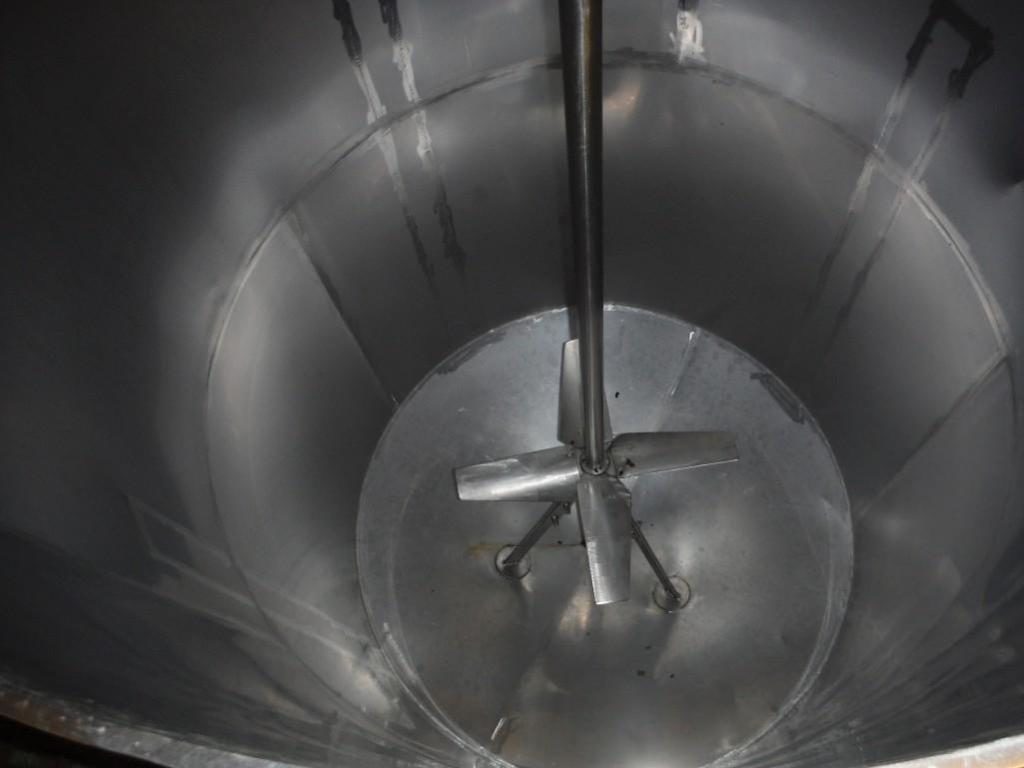

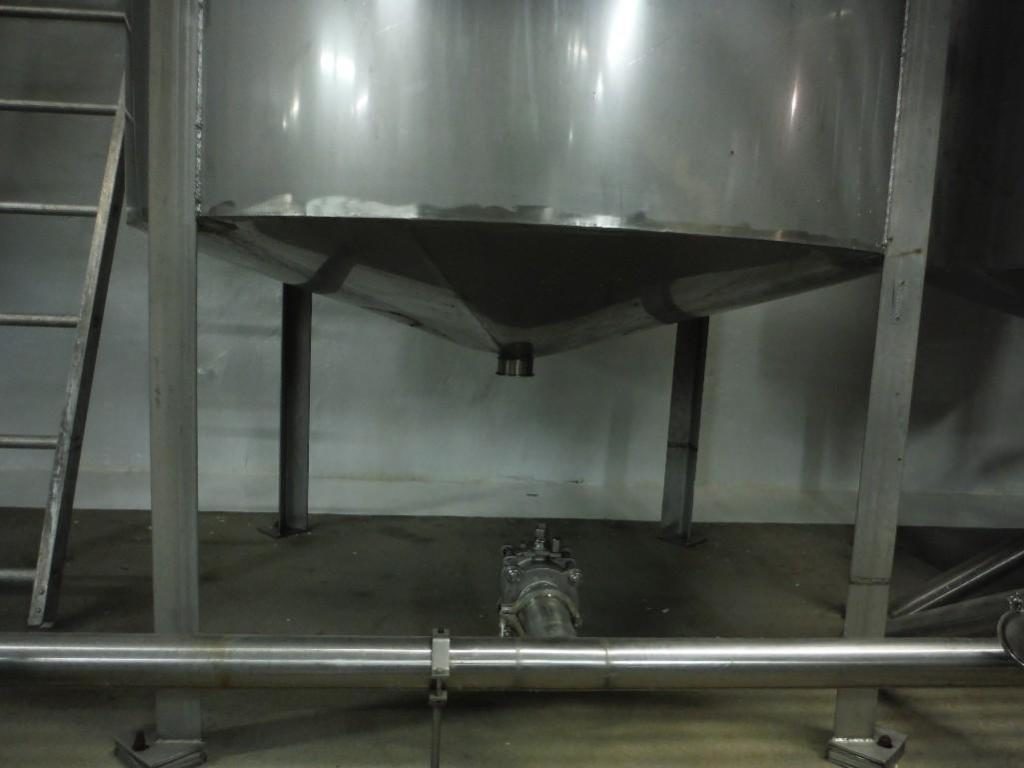

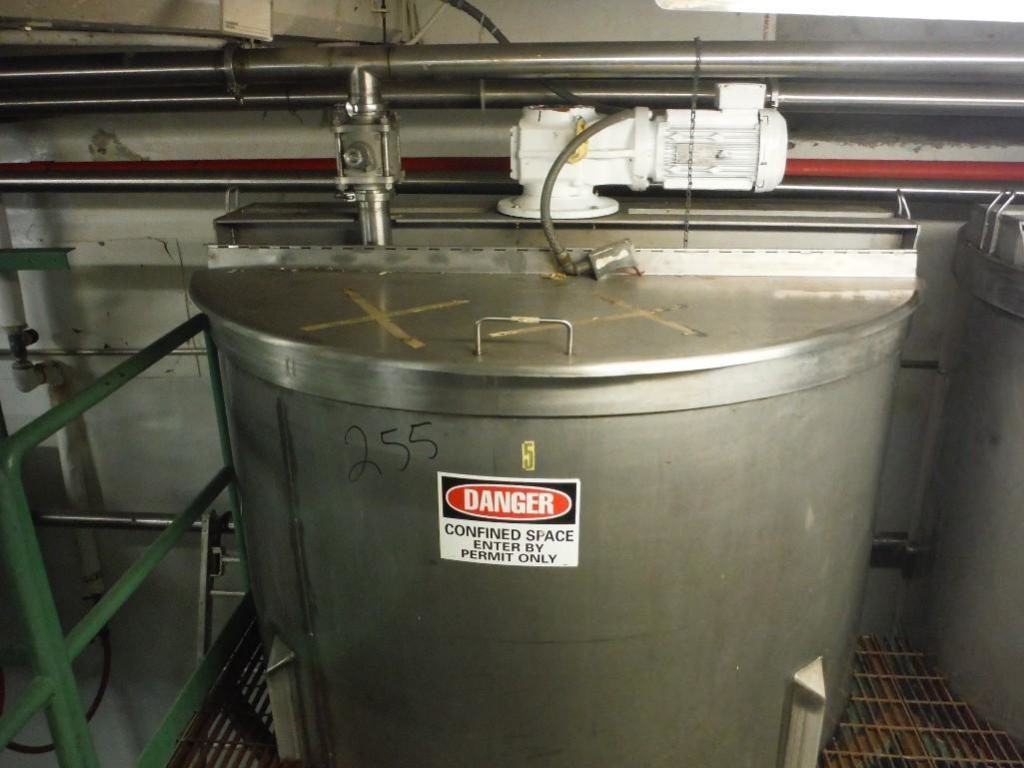

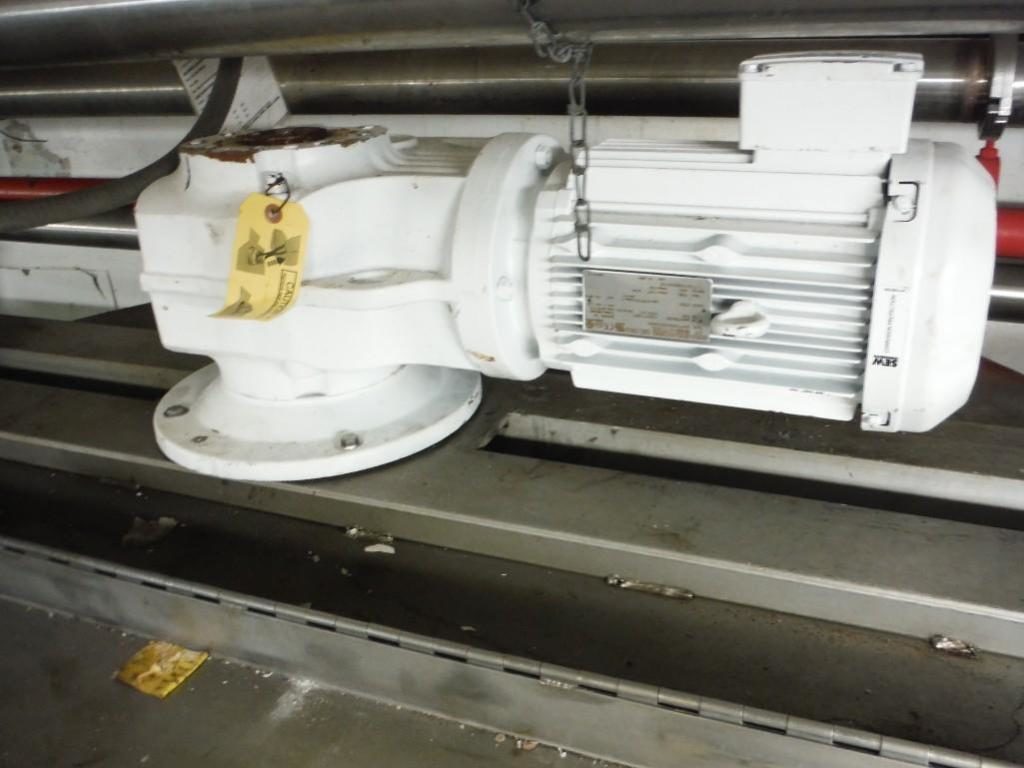

1400 gallon capacity, 316 stainless steel single wall tank. Vessel dimensions: 66" diameter x 96" deep with cone style bottom. Equipped with flip up covers, 5 Hp top mounted 30" diameter four-paddle prop agitator. Unit mounted on (4) legs with a 3½" OD / 3" ID Tri-clamp style bottom discharge with ___" ground clearance.

Top Ports: (1) 3½" OD / 3"ID Tri-clamp

OAD: 70"L x 70"W x ___"H
