Tank SS Single Wall 1500 GAL

• Model: 1500 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Single Wall

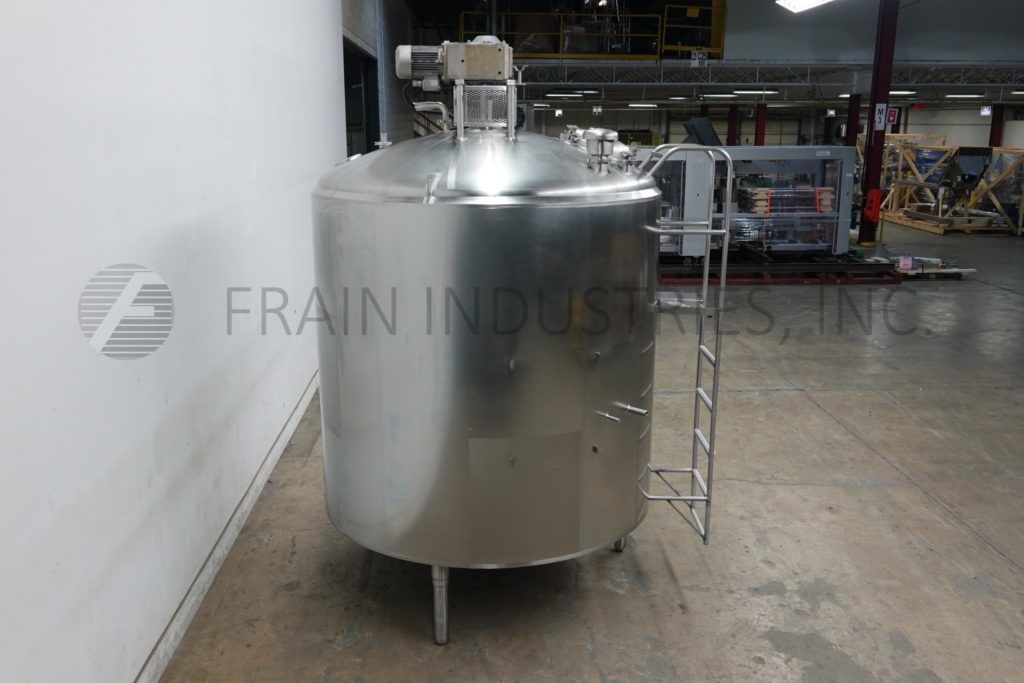

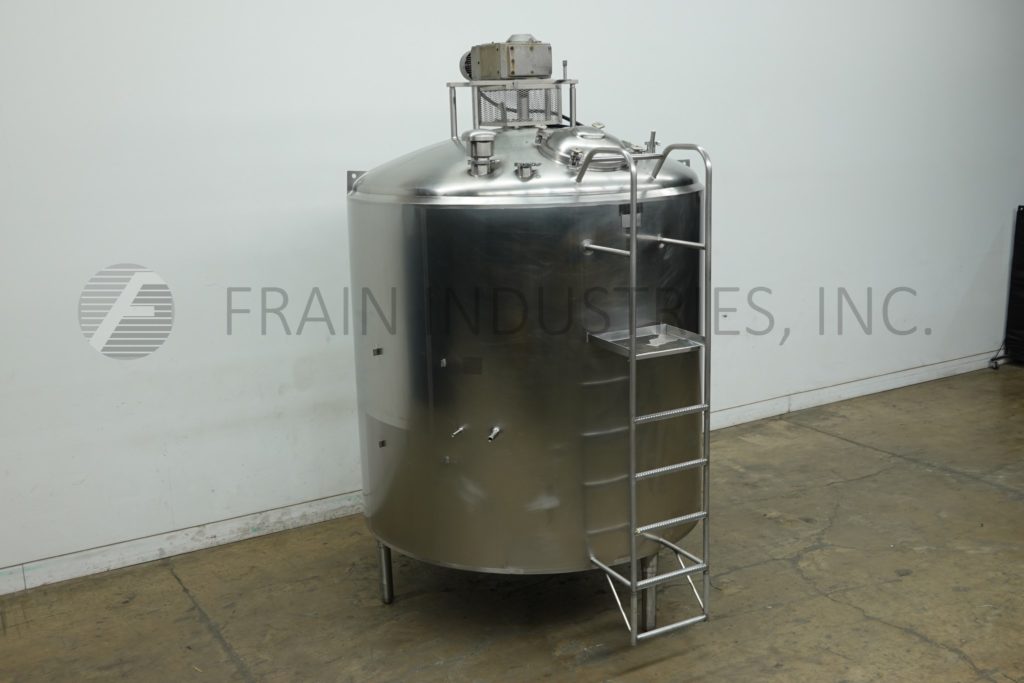

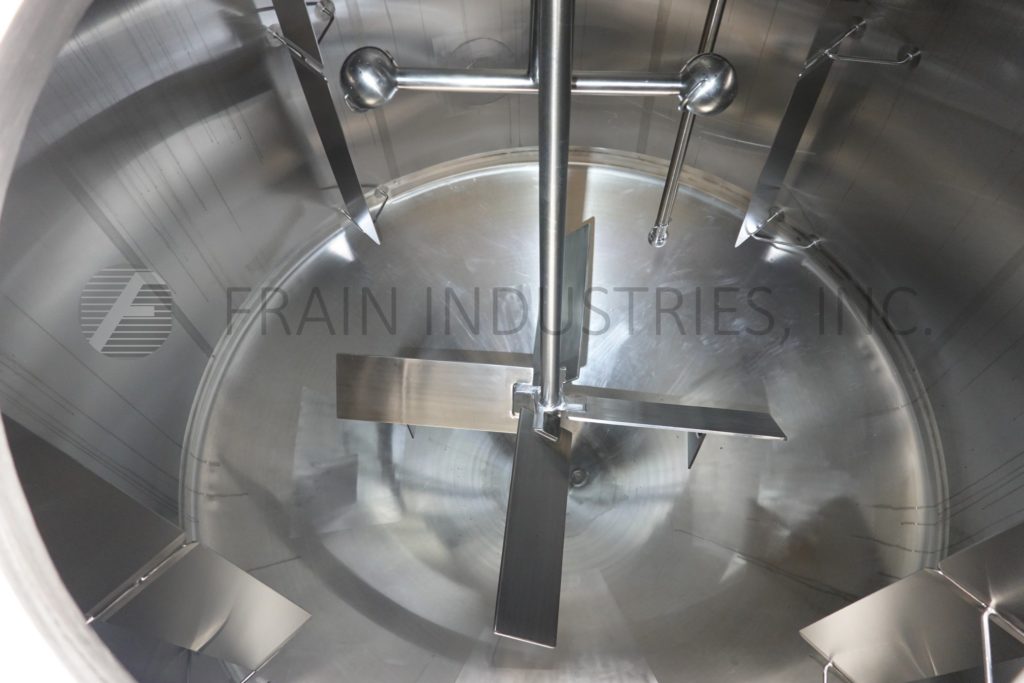

1,500 gallon capacity, 316 stainless steel insulated tank. Vessel dimensions: 86" diameter x 86" deep with a 60" straight wall and slant bottom. Equipped with a 18" diameter man way with flip bolt down cover, top mounted prop agitator, (2) CIP spray balls supplied by a 2"OD / 1½" ID Tri-clamp fitting, side mounted thermowell, fixed interior baffles and 3½" OD / 3" ID Tri-clamp style bottom discharge with 22" ground clearance. Mounted on (3) tube legs.

Top Ports:
(2) 2½" OD / 2" ID Tri-clamp
(2) 3½" OD / 3" ID Tri-clamp
(1) 4" OD / 3½" ID Tri-clamp

MAWP: 15 PSI (vessel)

OAD: 105"L x 96"W x 140"H
