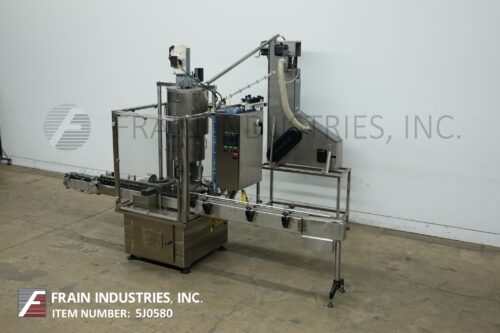

U S Bottlers Capper 4 Head (Capper) RC414

• Manufacturer: U S Bottlers
• Model: RC414
• Category: Capping
• Subcategory: 4 Head (Four Head)

U S Bottlers, Model RC-4-14, Stainless steel, (4) head, rotary chuck capper with cap feeder rated from 20 to 120 containers per minute – depending on materials and application. Cap sizes up to 110mm and containers up to 6 litres (with proper change parts). Equipped with incline cleated waterfall style cap feeder has 65" long x 6" wide conveyor with ¾" high cleats set on 2" centers, Also has 72" long x 4" wide Delrin container in feed conveyor, with 32" long worm screw to star wheel infeed and discharge, (4) torque open air chucks set on 10" centers and capable of doing a variety of caps (with proper change parts) has top mounted lift jack for easy adjustment and access. Control panel has A/B controller with A/B panelview and A/B powerflex vari-speed controllers, with capper start, stop, reset and e-stop push buttons, door lock, bottle stop, belt tention, cap gate, cap chuck and supply air gauges. Mounted on stainless steel frame with safety door guarding and leveling legs.

OAD: 90" L x 69" W x 104" H Capper
48" L x 16" W x 110" H Feeder
