Walker Tank SS Single Wall 4000 GAL

• Manufacturer: Walker
• Model: 4000 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Single Wall

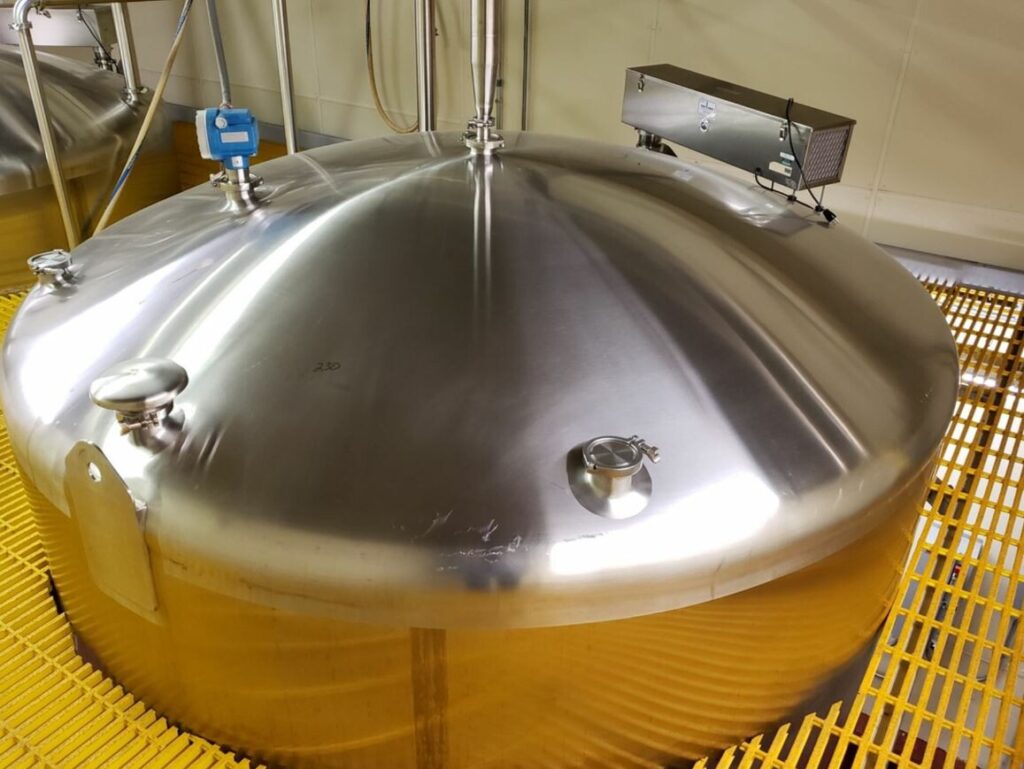

Walker 316L Stainless Steel, 4,000 Gallon, single wall tank. Vessel Dimensions: 102" diameter x 146" deep with a 108" straight wall. Equipped with dome top, 3½"OD / 3"ID Tri-Clamp infeed, (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-clamp fitting, 16" x 20" side bolt down manway and 6"OD / 5½"ID Tri-clamp fitting discharge with 24" ground clearance.

Top Access:
(5) 3½"OD / 3"ID Tri-Clamp

OAD: 115"L x 110"W x 175"H
